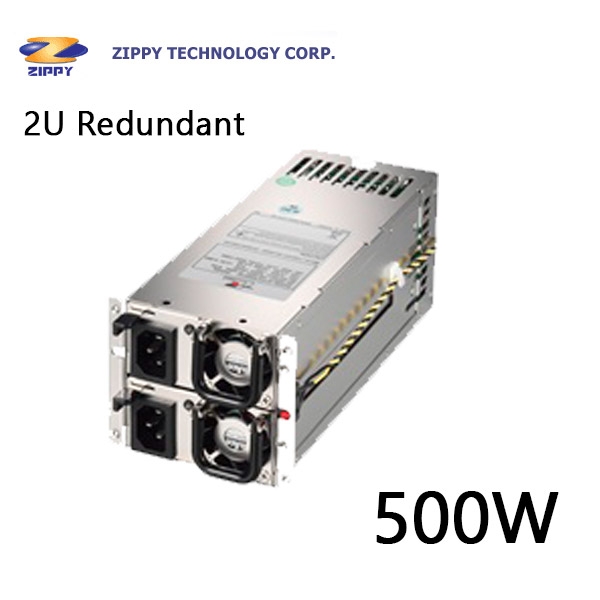

Zippy 2u Redundant Psu 500w M1p2-5500v4v Psuzipm1p25500v4v
SKU
249614
Brand
MPN
PSUZIPM1P25500V4V
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Special Price
$600.00
Regular Price
$606.00
Buy Now And Earn 600 Reward Points!
Featurs
- TEMPERATURE RANGE：OPERATING 0℃～40℃, STOREAGE -20℃~80℃
- HOLD UP TIME：16mS IN REGULATOIN LIMIT AT 90VAC INPUT VOLTAGE
- EFFICIENCY(PER SET)：POWER SUPPLY EFFICIENCY TYPICAL >80% AT 230V, FULL LOAD
- OUTPUT PROTECTION: OPP / OVP / SCP / OCP
- REMOTE ON / OFF CONTROL
- BALANCE LOAD SHARING DESIGN
- HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
- ISOLATION: BUILT-IN THE POWER MODULE
- FAULTY ALARM METHODS: BUZZER, TTL SIGNAL
- EMI: IEC61000-3-2, FCC, CISPR 22(EN 55022)
- EMS: EN 61000-4-2 ESD, EN61000-4-4 EFT, EN61000-4-5 SURGE
- SAFETY APPROVAL: UL, CUL, TUV, CCC
specification
- VOLTAGE：90 ~ 264VAC
- FREQUENCY: 47~63HZ
- STEADY-STATE CURRENT: 8/4A MAX AT ANY LOW/HIGH VOLTAGE
- INRUSH CURRENT: 40/60A @ 115/230VAC
Dimension
217x85x84(mm)
8.54x3.35x3.31(inch)
Featurs
- TEMPERATURE RANGEï¼OPERATING 0âï½40â, STOREAGE -20â~80â
- HOLD UP TIMEï¼16mS IN REGULATOIN LIMIT AT 90VAC INPUT VOLTAGE
- EFFICIENCY(PER SET)ï¼POWER SUPPLY EFFICIENCY TYPICAL >80% AT 230V, FULL LOAD
- OUTPUT PROTECTION: OPP / OVP / SCP / OCP
- REMOTE ON / OFF CONTROL
- BALANCE LOAD SHARING DESIGN
- HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
- ISOLATION: BUILT-IN THE POWER MODULE
- FAULTY ALARM METHODS: BUZZER, TTL SIGNAL
- EMI: IEC61000-3-2, FCC, CISPR 22(EN 55022)
- EMS: EN 61000-4-2 ESD, EN61000-4-4 EFT, EN61000-4-5 SURGE
- SAFETY APPROVAL: UL, CUL, TUV, CCC
specification
- VOLTAGEï¼90 ~ 264VAC
- FREQUENCY: 47~63HZ
- STEADY-STATE CURRENT: 8/4A MAX AT ANY LOW/HIGH VOLTAGE
- INRUSH CURRENT: 40/60A @ 115/230VAC
Dimension
217x85x84(mm)
8.54x3.35x3.31(inch)
