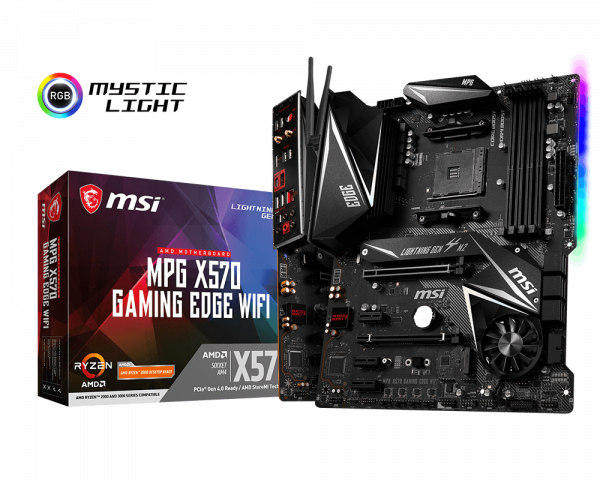

main product photo

MSI X570 Gaming Edge Wi-Fi Amd Atx Mb Mpg X570 Gaming Edge Wi-F

SKU
279534
Brand
Msi
Manufacturer Link
MPN
MPG X570 GAMING EDGE WI-FI
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
Preorder (Contact Us)
Freight Estimate
$328.00
Buy Now And Earn 328 Reward Points!
Add to Compare
AUDIO FEATURES
Audio Card: ALC1220
Audio Features: * 7.1-Channel High Definition Audio
Manufacturer: Realtek
CHIPSET FEATURES
Chipset Type: X570
Manufacturer: AMD
CONTROLLER FEATURES
RAID Supported: ,0 ,1 ,10
INTERFACE FEATURES
I/O Ports (Back): ,1 x BIOS Flashback Button ,1 x HDMI ,1 x Headphone ,1 x Optical SPDIF Out ,1 x PS/2 Mouse/Keyboard ,1 x RJ45 ,1 x USB 3.2 Type C ,2 x USB 2.0 ,5 x Audio ,5 x USB 3.2 Type A
I/O Ports (Internal): ,1 x 24 pin ATX Power ,1 x 4 pin ATX Power ,1 x 4 pin CPU Fan Connector ,1 x 8 pin ATX Power ,1 x Chassis Intrusion connector ,1 x Front Panel Audio ,1 x Serial ,1 x TPM Module Connector ,4 x USB 2.0 ,6 x SATA
Slots Type: ,2 x M.2 ,2 x PCIe 3.0 x16 ,3 x PCIe 3.0 x1
MEMORY FEATURES
Maximum Memory Capacity: 128 GB
Memory Type Supported: DDR4
Speed Supported: ,1866 ,2133 ,2400 ,2667 ,2800 ,2933 ,3000 ,3066 ,3200 ,3466
Total No. of Slots: 4
NETWORK FEATURES
Manufacturer: Realtek
Network Card Controller: RTL8111H
Network Card Type: Gigabit Ethernet
OTHER FEATURES
Other Features: * Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers
PROCESSOR FEATURES
Manufacturer: AMD
Processor Type Supported: ,Ryzen 3 ,Ryzen 5 ,Ryzen 7 ,Ryzen 9
PRODUCT
Brand Name: MSI
Form Factor: ATX
Manufacturer Web Site: http://www.msi.com
Product Model: MPG X570 GAMING EDGE WIFI
Product Type: Motherboard
