Startech Usb To Sata Converter For Raspberry Pi And Development Boards - Usb To Sata Adapter For
SKU
242787
Brand
MPN
PIB2S31
Warranty
1 Year Manufacturer's return to base
Availability
In stock
$32.00
Buy Now And Earn 32 Reward Points!
QUICK OVERVIEW
Raspberry Pi Board - Includes USB Cable PIB2S31

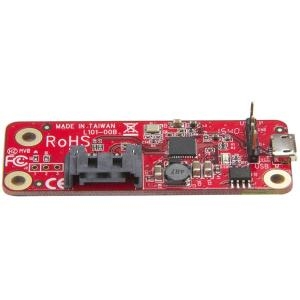

USB to SATA Converter for Raspberry Pi and Development Boards - USB to SATA Adapter for Raspberry Pi Board - Includes USB Cable - Supports SATA I, II & III - Supports SATA devices
by Startech
Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to a SATA-based drive. Perfect for custom projects and applications, this USB to SATA converter supports all models of Raspberry Pi as well as other development boards.
| Performance | |
| Maximum Data Transfer Rate | 480 Mbps |
| MTBF | 6,481,043 hrs |
| Type and Rate | SATA III (6 Gbps) |
| USB 2.0 - 480 Mbit/s | |
| Physical Characteristics | |
| Color | Red |
| Product Height | 11 mm [0.4 in] |
| Product Length | 66 mm [2.6 in] |
| Product Weight | 7.6 g [0.3 oz] |
| Product Width | 23 mm [0.9 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | nuts |
| quick-start guide | |
| screws | |
| standoffs | |
| USB to SATA converter | |
| USB-A to Micro-B cable | |
| Performance | |
| ATAPI Support | Yes |
| Packaging Information | |
| Shipping (Package) Weight | 70.4 g [2.5 oz] |
| Hardware | |
| Number of Drives | 1 |
| Interface | USB 2.0 |
| Compatible Drive Types | SATA |
| Chipset ID | Renesas/NEC - ?PD720231A |
| Bus Type | USB 2.0 |
| Environmental | |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Humidity | 15% ~ 90% RH |
| Connector(s) | |
| Host Connectors | USB Micro-B (5 pin) |
| Drive Connectors | 7 pin SATA Data Plug |
