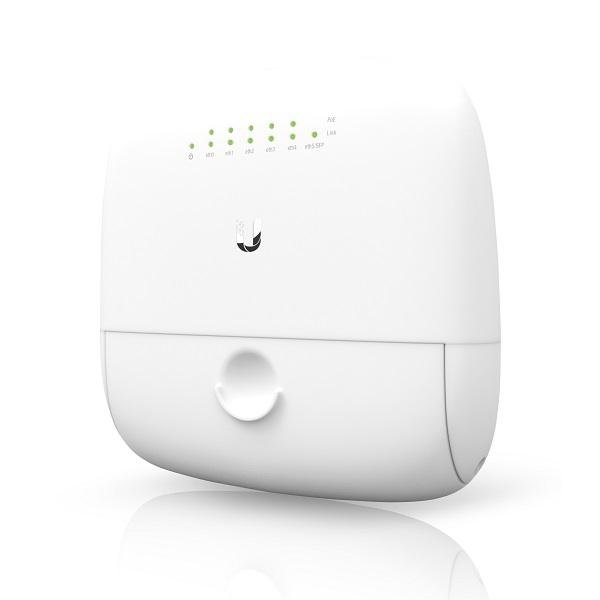

Ubiquiti Edgepoint Wisp Router 6 Port Ep-r6
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
Purpose-Built for WISP Control
The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX® with fiber backhaul and versatile powering capabilities.
All-in-One Design
A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.
Advanced Routing Applications
Powerful routing features – such as link balancing – provide redundancy and increased performance for outdoor wireless links.
Model Comparison
 EP-R6 |  EP-R8 |  EP-S16 | |
|---|---|---|---|
| Function | Router | Router | Switch |
| Gigabit RJ45 Ports | 5 | 6+2* | 16 |
| SFP Ports | 1 | 2* | N/A |
| SFP+ Ports | N/A | N/A | 2 |
| Power Input | (1) DC Terminal Block or (1) 24V, 4-Pair | (1) DC Terminal Block or (2) 54V, 4-Pair | (1) DC Terminal Block or (2) 54V, 4-Pair |
| PoE Output | (5) 24V, 2-Pair | (2) 54/24V, 4-Pair (5) 24V, 2-Pair | (4) 54/24V, 4-Pair (12) 802.3af/at or 24V, 2-Pair |
Bottom Panel
•Power Options - 24VDC, 3A Terminal Block or PoE Input
•(5) 24V, 0.7A Passive PoE Output Ports
•(1) SFP Port
