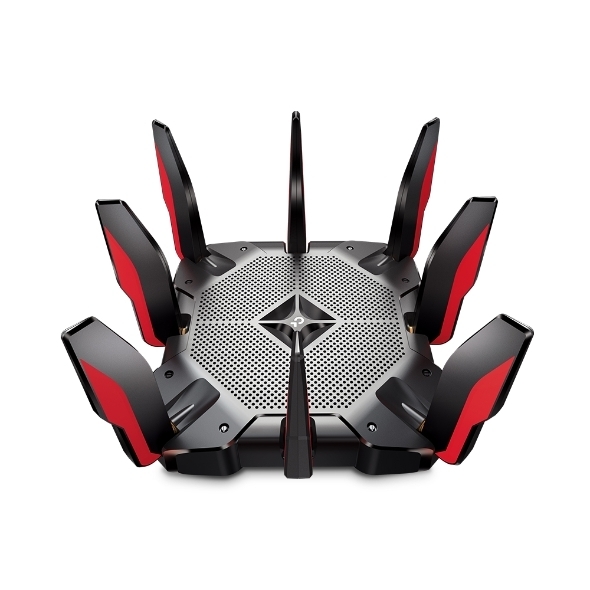

Tp-Link Archer Ax11000 Next-Gen Tri-Band Gaming Router Quad-Core Cpu Ant(8) Gbe(8) Lan Archerax11000

SKU
289537
Brand
Tplink
MPN
ARCHERAX11000
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
Special Price $695.00 Regular Price $702.00
Buy Now And Earn 695 Reward Points!
Add to Compare
HARDWARE FEATURES
Processor 1.8 GHz 64 bit Quad-Core CPU
Memory 1 GB RAM
512 MB Flash
Interface 1× 2.5G/1G/100M WAN Port
8× 1G/100M/10M LAN Ports
1× USB-C 3.0 Port + 1× USB-A 3.0 Port
Button Wi-Fi On/Off Button
Reset Button
WPS Button
Power On/Off Button
LED on/off Button
External Power Supply 12 V ⎓ 5 A
Dimensions ( W x D x H ) 11.3 × 11.3 × 7.2 in.
(288 × 288 × 184mm)
Antenna 8× High-Performance External Antennas
WIRELESS FEATURES
Wireless Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Frequency 5 GHz
2.4 GHz
Signal Rate AX11000
5 GHz: 4804 Mbps (802.11ax)
5 GHz: 4804 Mbps (802.11ax)
2.4 GHz: 1148 Mbps (802.11ax)
Reception Sensitivity 5 GHz_1:
11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm
11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm
11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm
11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm
11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm
11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm
11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm
5 GHz_2:
11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm
11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm
11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm
11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm
11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm
11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm
11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm
2.4 GHz：
11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm
11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
Wireless Functions Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA
Wireless Security WEP
WPA/WPA2
WPA2
Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
Guest Network 1× 5 GHz guest network
1× 2.4 GHz guest network
SOFTWARE FEATURES
Quality of Service Advanced Gaming Qos powered by TrendMicro
WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management Advanced Parental control powered by TrendMicro, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Dynamic DNS DynDns, NO-IP, TP-Link
VPN PPTP, OpenVPN
Protocols IPv4, IPv6
NAT Port Forwarding, Port Triggering, UPnP, DMZ
OTHERS
Certification FCC, CE, RoHS
Package Contents Wireless Router Archer AX11000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
