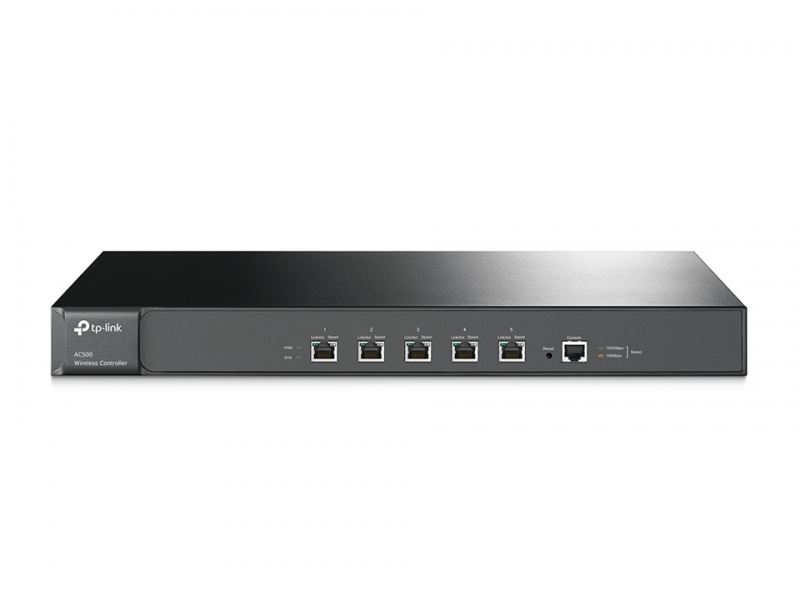

Tp-Link Ac500 Wireless Controller 5* Gigabit Up To 500 Aps 32 Ssids Ac500

SKU
272257
Brand
Tp-link
Manufacturer Link
MPN
AC500
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
Special Price $304.00 Regular Price $350.00
Buy Now And Earn 304 Reward Points!
Add to Compare

AC500 Wireless ControllerAC500

  • Auto-detect and centralized management, up to 500 CAPs
  • License-free management reduces the OPEX of enterprise network
  • Easy deployment without changing the existing network topology
  • Unified configuration of wireless networks, support mapping of SSID and VLAN
  • Support MAC authentication, portal authentication
  • Dual-link back up for management safety

Introducing the New Auranet CAP Series
Wi-Fi Solution

Ultimate Network Security and Stability

The businesses of today are demanding ever greater flexibility and security from their wireless networks to keep up in a world where things move fast. TP-Link’s new Auranet CAP series delivers that and more. CAP access points work together with Auranet Wireless Controllers to provide scalable solutions with exceptional Wi-Fi performance and easy deployment.

  •  Centralized
    Management
  •  Flexible
    and Scalable
  •  Redundancy
    and Backup
  •  Instant
    Deployment
Centralized Management and Automatic Discovery

Manage hundreds of access points at once using Auranet Wireless Controllers. Adding new access points couldn’t be simpler with automatic discovery. Controllers detect access points, apply your configuration settings and begin to centrally manage them as soon as they join the network, allowing you to concentrate on what matters.

Wireless Controller

  • New device
  • Existing devices
Manage Up to 500 APs without License Fees
Complete Scalability Without the License Fees

Expand your network when the time is right, without the complications. With no license fees at any stage, choose from a range of wireless controllers to match the scale of your ambitions.

High Specification
Controller Hardware

Auranet Wireless Controllers contain a high-specification 1GHz Dual-Core processor that guarantees network stability. Together with other sophisticated hardware, this provides superior reliability and wireless capabilities.

Backup You Can Rely On

Establish complete network stability by deploying wireless controllers in a dual-link arrangement. If one controller fails, another can take over to ensure your network remains free from disruption.

Backup Device

Unobtrusive Design
and Easy Installation

The CAP’s easy-mount chassis makes
installation on a wall or ceiling surface simple and
fast, while the incorporation of Power over
Ethernet (PoE) support makes deployment
effortless and flexible. A smart, refined
appearance ensures Auranet CAP series access
points blend in seamlessly with almost any
interior design style.

  • Compact
    Design
  • Flexible
    Deproyment
  • Power over
    Ethernet
Customized Guest
Authentication

Portal Authentication is great way to customize the guest Wi-Fi experience, while other authentication methods are also supported. Create your own unique authentication page to promote your business to guests and take complete control with a range of Wi-Fi settings.

HARDWARE FEATURES
Installation Rack-mount

　
Processor 1GHz Dual-core MIPS64 network dedicated processors
Memory 256MB DDR3*2, 32MB Flash*1

　
Interface Gigabit Ethernet Port*5
Console Port*1
　
Power Supply 100～240V AC,50/60Hz

　
LED Port: Link/Act, 1000M/100M
Device: PWR, SYS
　
Dimensions ( W x D x H ) 17.3*8.7*1.7 in. (440 × 220 × 44 mm)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
FEATURES
Management Scale Up to 500 APs
Wireless Fuction L3 Management
Multi-SSID
Load Balance
Band Steering
DHCP Server
WMM
Communication protocol
　
Wireless Security SSID to VLAN Mapping
AP Isolation
SSID Isolation
Encryption
　
AP Management AP Automatic Discovery
AP Unified Configuration
AP Reboot Schedule
AP Batch Firmware Upgrade
Grouped AP management
AP LED ON/OFF
Web-based Management
　
Authentication Captive Portal Authenticaton
MAC Authentication
　
System status AP Status
Client Status
Authenticated User Status
　
System Management Configuration Backup/Import
Ping/Tracert Tool
System Log
　
OTHERS
Certification CE, FCC, RoHS
Package Contents AC500
Power Cord
Quick Installation Guide
System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Warranty Limited 3-Year Warranty

For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma
