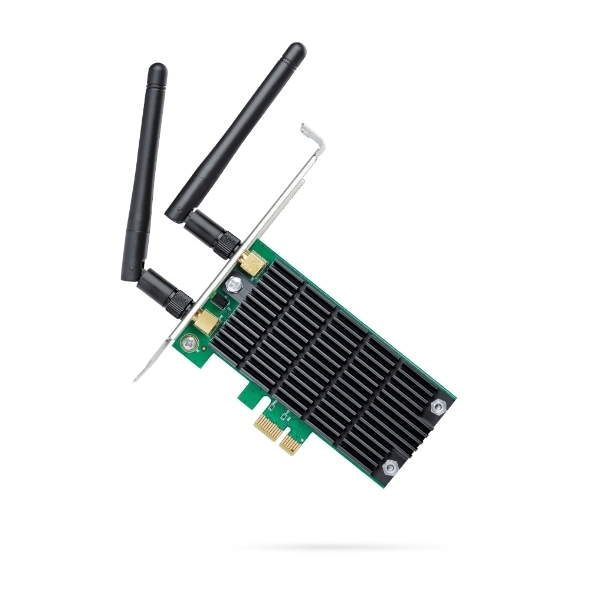

Tp-link Ac1200 Dual Band Wireless Pci Express Adapter 3yr Wty Archert4e

SKU
271454
Brand
Tplink
Manufacturer Link
MPN
ARCHERT4E
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
Preorder (Contact Us)
Freight Estimate
$67.00
Buy Now And Earn 67 Reward Points!
Add to Compare
HARDWARE FEATURES
Interface PCI Express
Dimensions ( W x D x H ) 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
Antenna Type 2 Dual Band Detachable Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Signal Rate 5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity 5 GHz :
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm

2.4GHz :
11n HT40: -67.5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86.5 dBm
Transmit Power 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
Wireless Modes Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD
System Requirements Windows 10/8.1/8/7/XP (32/64bit)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
