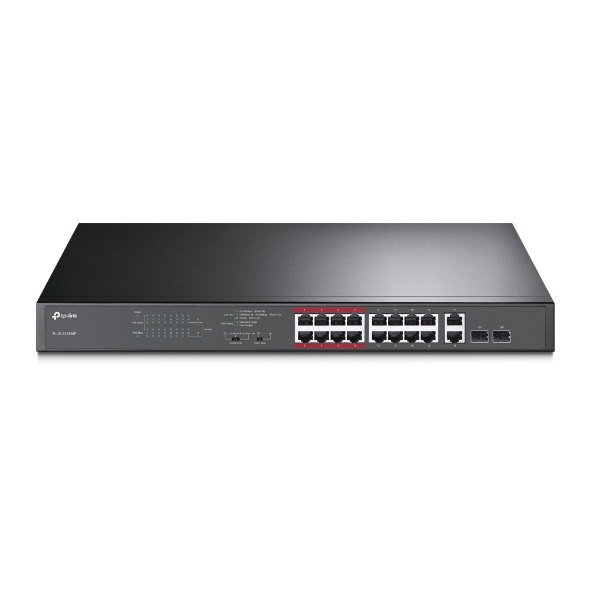

Tp-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch (Tl-Sl1218Mp)

SKU
297234
Brand
Tp-link
Manufacturer Link
MPN
TL-SL1218MP
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
Special Price $261.00 Regular Price $264.00
Buy Now And Earn 261 Reward Points!
Add to Compare
HARDWARE FEATURES
Interface 16 PoE+ 10/100Mbps RJ45 Ports
2 10/100/1000Mbps RJ45 Ports
2 Combo Gigabit SFP Slots
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
Backup Bandwidth 7.2 Gbps
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W
Mac Address Table 8K
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Max Power Consumption 18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation 63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3at/af Compliant PDs
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SL1218MP, Power Cable, Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty Limited 5-Year Warranty
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma
PoE Swith: 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch 192W
