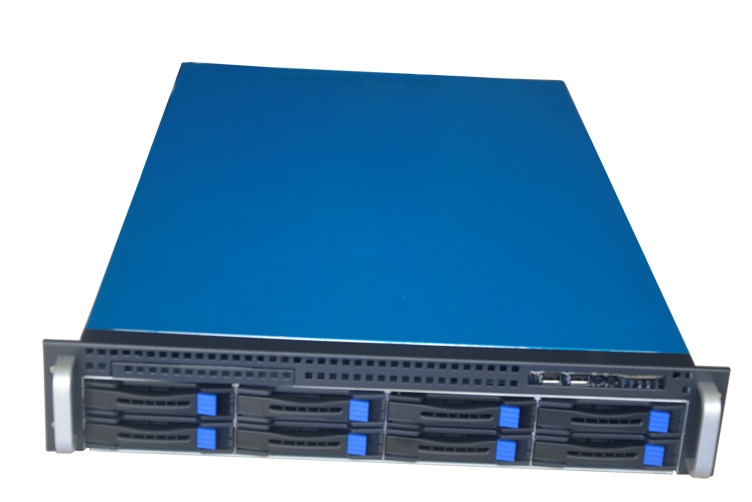

Case dimension

680*430*88.5mm

Case steel

1.2mm SGCC

Drivers

8x 3.5“（or 2.5'）hotswap

fixed 3.5” *1 (or fixed 2.5”/SSD *2)

slim DVD*1

backplane

1 X 6Gb/s SATA/SAS (2*mini SAS)

Cooling fans

4x 8038 ball-bearing

MB

12” x 13”

PSU

2U or redundant 1+1

(2U: SG2U600,SG2U700,etc)

(Redundant: R2-600,R2-750,R2-1200,etc)

PCI

7* Low-profile PCI

Front I/O

Power on/off, reset, USB2.0*2

LED

1*hdd,1*power,3* Lan

PWM

support

Slide

TGC-03A-PRO 550MM,TGC-03S 660MM

Packing

Single box (Length: 865MM,Width: *615MM,Height: 176 MM)

Gross weight: 12.0kgs
