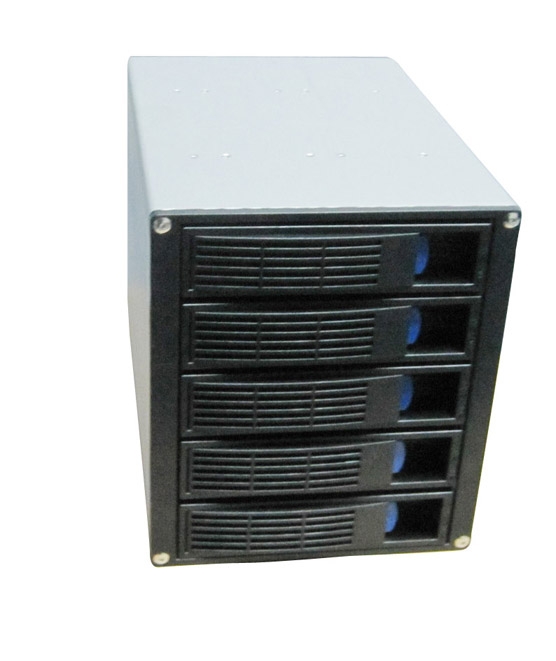

Tgc Chassis Accessory Sata Hot Swap Drive Bay H500
Features:
5×3.5" Hot-swap HDD trays Hot-swap module
Supporting 5 Bay SATA-I (or SATA-II) /SAS Hot-swap
Steel material, ROHS compliance
Electromagnetism shield design
Redundant 4-pin molex power connectors
Support hot-swap
Supporting all operating systems
Ball bearing fan with air duct
Supporting RAID 0,1,5,6,10 functions( Raid card required)
Specifications:
Drive bay: turn 3×5.25" drive bay to 5×3.5" hot-swap drive bay
Interface: SATA to SAS,SAS to SAS
Fan sensor: Fan failure sensor
Alarm: overheating alarm
Cooling system: 1×80mm ball baring fan with air duct providing excellent cooling air flow
RAID: support RAID 0,1,5,6,10 functions( Raid card required)
Power connector: 2×4-pin molex power connector
Data connector: 5×SATA( I or II or III) /SAS data port
Dimension(L×W×H): 8.6×5×5.8 inch
Weight: 5.5 lbs
