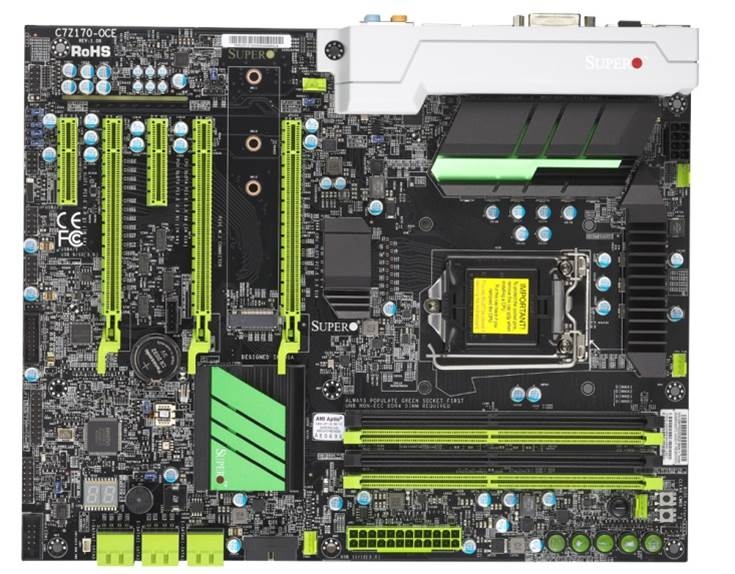

Supermicro Z170 Overclocked 4x Ddr4 M.2 Sata Raid 3x Pcie X16 7.1 Audio Usb3.1 (10gbs) Atx C7z170-oce

Name: Supermicro Z170 Overclocked 4x Ddr4 M.2 Sata Raid 3x Pcie X16 7.1 Audio Usb3.1 (10gbs) Atx C7z170-oce
Brand: Supermicro
SKU: 269712
Price: 514 AUD
Availability: InStock

SKU

269712

Brand

Supermicro

Manufacturer Link

MPN

C7Z170-OCE

Manufacturer Product Link

Warranty

1 Year Manufacturer's return to base

Availability

In stock

Freight Estimate

Special Price $514.00 Regular Price $591.00

Buy Now And Earn 514 Reward Points!

Intel® 6th Generation Core™ i3 series, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i3 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series. , Socket H4 (LGA 1151) supported, CPU TDP support Up to 160W
Intel® Z170 Express
64GB Unbuffered non-ECC UDIMM, DDR4-3300MHz (OC), in 4 DIMM slots
3 PCI-E 3.0 x16,
2 PCI-E 3.0 x1***3 PCI-Ex16 slots are running at 16/NA/16 or 16/8/8, 2 PCI-E x1 are in x4 slots***
1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port,
***Display Port support up to DP1.2, HDMI support up to HDMI1.4b(will free upgrade to HDMI2.0 in 2016)***
Intel® Z170 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
+ 1 PCI-E M.2(PCI-E x4, 2260/2280/22110)(No Raid Support)
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® single Ethernet PHY i219V

Product SKUs

MBD-C7Z170-OCE	C7Z170-OCE


Physical Stats

Form Factor	ATX
Dimensions	12" x 9.6" (30.48cm x 24.38cm)


Processor/Cache

CPU	Intel® 6th Generation Core™ i3 series, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i3 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series. Socket H4 (LGA 1151) supported, CPU TDP support Up to 160W


System Memory

Memory Capacity	64GB Unbuffered non-ECC UDIMM, DDR4-3300MHz (OC), in 4 DIMM slots
Memory Type	2400/2133/1866 Non-ECC DDR4 UDIMM
DIMM Sizes	2GB, 4GB, 8GB, 16GB
Memory Voltage	1.2V


On-Board Devices

Chipset	Intel® Z170 Express
SATA	Intel® Z170 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 + 1 PCI-E M.2(PCI-E x4, 2260/2280/22110)(No Raid Support)
Network Controllers	Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® single Ethernet PHY i219V
Audio	ALC 1150 HD Audio
Graphics	*Display Port support up to DP1.2, HDMI support up to HDMI1.4b(will free upgrade to HDMI2.0 in 2016)*


Input / Output

LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	6 USB 2.0 ports (2 rear + 4 headers), 4 USB 3.0 ports (2 rear + 2 headers); 1 USB 3.1 (10 Gb/s) Type C port (Rear), 2 USB 3.1 (10Gb/s) ports (Headers)
Video Output	1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port, *Display Port support up to DP1.2, HDMI support up to HDMI1.4b(will free upgrade to HDMI2.0 in 2016)*
Serial Port / Header	1 COM Port (1 header)
TPM	1 TPM Header
Others	Support SPDIF-Out(Rear)

Expansion Slots

PCI-E	3 PCI-E 3.0 x16, 2 PCI-E 3.0 x1 *3 PCI-Ex16 slots are running at 16/NA/16 or 16/8/8, 2 PCI-E x1 are in x4 slots*


System BIOS

BIOS Type	AMI UEFI
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup


Management

Software	SuperDoctor® 5, Watchdog


PC Health Monitoring

Voltage	+12V, +3.3V, +5V, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN	5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication
Temperature	CPU thermal trip support I2C temperature sensing logic PECI Thermal Monitor 2 (TM2) support
LED	N/A
Other Features	8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL
