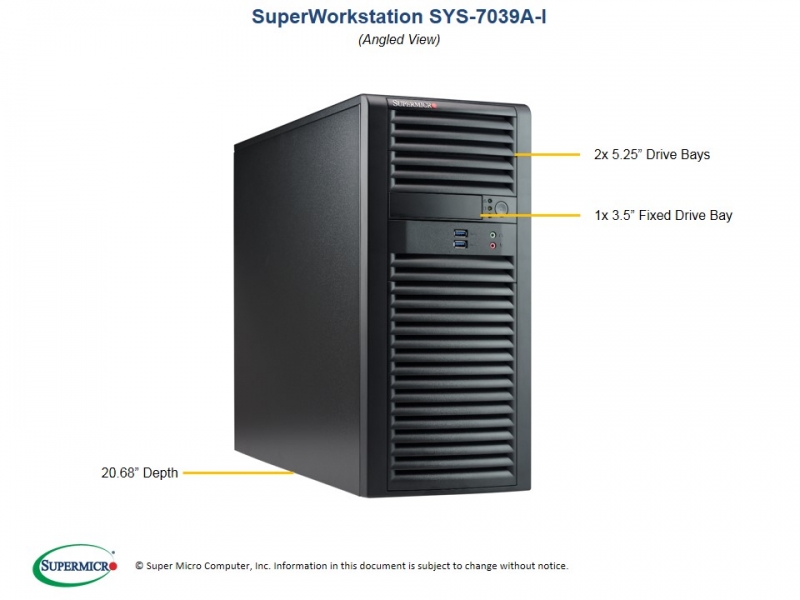

Supermicro Superworkstation 7039a-i 4u Tower Dual Socket Lga3647 16x Dimm Intel C621 2 X Gb Lan

Name: Supermicro Superworkstation 7039a-i 4u Tower Dual Socket Lga3647 16x Dimm Intel C621 2 X Gb Lan
Brand: Supermicro
SKU: 269710
Price: 1778 AUD
Availability: InStock

SKU

269710

Brand

Supermicro

Manufacturer Link

MPN

SYS-7039A-I

Manufacturer Product Link

Warranty

1 Year Manufacturer's return to base

Availability

Preorder (Contact Us)

Freight Estimate

$1,778.00

Buy Now And Earn 1778 Reward Points!

QUICK OVERVIEW

IMPI 4 x 3.5" HDD Fixed 1200w PSU SYS-7039A-I

1. Dual socket P (LGA 3647) supports
Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s

2. Up to 2TB ECC 3DS L/RDIMM, up to
DDR4-2666MHz; 16 DIMM slots

3. 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots,
    M.2 Interface: PCI-E 3.0 x4
    M.2 Form Factor: 2260, 2280, 22110
    M.2 Key: M-Key, 2 PCI-E 3.0 NVMe
    x4 Internal Port(s)

4. 2x 1GbE LAN ports

5. 7.1 HD Audio

6. 4 Internal fixed 3.5" drive bays,
2 5.25" peripheral drive bays

7. 1 M.2 slot, 2 NVMe support with
optional cables

8. 1200W High-efficiency Power Supply
Platinum Level Certified


Product SKUs

SuperWorkstation	SYS-7039A-i (Black)


Motherboard

Super X11DAi-N


Processor/Cache

CPU	Dual Socket P (LGA 3647) Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s Support CPU TDP 70-205W
Cores	Up to 28 Cores with Intel® HT Technology

GPU Support

Please refer to: Compatible GPU list


System Memory

Memory Capacity	16 DIMM slots Up to 2TB ECC 3DS LRDIMM, up to 2TB ECC 3DS RDIMM, DDR4 up to 2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes	RDIMM: 64GB LRDIMM: 64GB 3DS LRDIMM: 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Dual LAN with GbE from C621
IPMI	ASPEED AST2500
Audio	RealTek ALC888 7.1 High Definition Audio with S/PDIF header


Input / Output

SATA	10 SATA3 (6Gbps) ports
NVMe	2 NVMe support with optional cables
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	6 USB 3.0 ports (4 rear, 2 front) 2 USB 3.1 ports (rear)
Audio	7.1 HD Audio with optical S/PDIF
Video	1 VGA port
Serial Port / Header	1 COM port (header)
DOM	2 SuperDOM (Disk on Module) ports
TPM	1 TPM 2.0 Header


System BIOS

BIOS Type	UEFI 128M


Management

Software	Intel® Node Manager IPMI 2.0 SSM, SPM, SUM SuperDoctor® 5 Watchdog


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis

Form Factor	Mid-Tower
Model	CSE-732D3-1200B


Dimensions and Weight

Height	16.7" (424mm)
Width	7.6" (193mm)
Depth	20.68" (525.3mm)
Gross Weight	40 lbs (18.1 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button
LEDs	Power LED Hard drive activity LED Network activity LED System Overheat LED
Ports	2 front USB 3.0 Ports 2 front HD/AC97 Audio Ports


Expansion Slots

PCI-Express	4 PCI-E 3.0 x16 slots 2 PCI-E 3.0 x8 slots
M.2	M.2 Interface: PCI-E 3.0 x4 Form Factor: 2260, 2280, 22110 Key: M-Key


Drive Bays

Internal	4 Fixed 3.5" drive bays (90° rotatable drive cage) Enterprise SATA HDD only recommended
Peripheral Bay	2x 5.25" standard drive bays 4x 2.5" fixed drive bays (optional)


System Cooling

Fans	1x 12cm rear exhaust fan 1x 12cm front cooling fan Optimized cooling technology for Whisper-Quiet Operation


Power Supply

1200W high-efficiency power supply w/ PMBus
AC Input	1000W: 100-114.9 V, 50-60 Hz, 12 Amp 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output 1000W max 1200W max	+3.3V / +5V / +12V / -12V / +5VSB 20A / 20A / 83A / 0.3A / 3A 20A / 20A / 99A / 0.3A / 3A
Note:	Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification	Platinum Certified


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
