Model

Brand

SUPERMICRO

Model

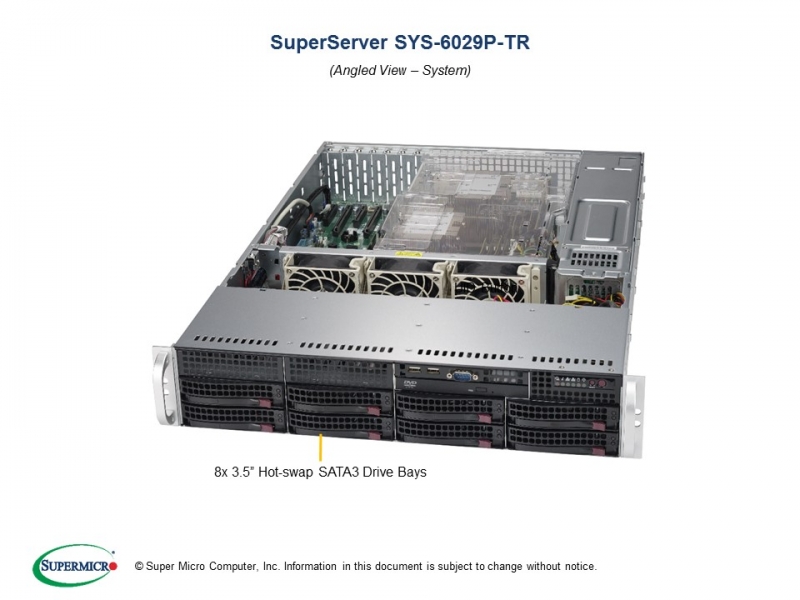

SYS-6029P-TR

CPU Supported

CPU Type

Intel Xeon Scalable Processors
Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W

CPU Socket

Dual LGA 3647

Chipset

North Bridge

Intel C621

Memory Supported

Memory Slots

16 x DIMM Slots

Max Memory Supported

Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666 MHz

Memory Type Supported

DDR4 2666 / 2400 / 2133 MHz ECC SDRAM

ECC Supported

Yes

Storage Supported

Serial ATA

8 x SATA 600

SATA RAID

RAID 0/1/5/10

Graphics

GPU/VPU

ASPEED AST2500 BMC

Expansion Slots

PCI Express

4 x PCI-E 3.0 x16 (Low-profile)
2 x PCI-E 3.0 x8 (Low-profile)

Communications

Number of LAN

2 x GbE LAN Ports

First LAN

Intel X722

Second LAN

Intel X722

Max. LAN Speed

Dual 10/100/1000Mbps

Expansion Bays

Hot-Swap Bays

8 x Hot-swap 3.5" SATA drive bays

Panel Ports

VGA

1 x VGA port

Rear USB

2 x USB 3.0 + 2 x USB 2.0

RJ45

2 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port

Power Supply

Max. Power

1000W Redundant Power Supplies with PMBus

Features

Features

Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s

Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666 MHz; 16 x DIMM slots Supports Intel Optane Memory NVDIMM

4 x PCI-E 3.0 x16, 2 x PCI-E 3.0 x8 slots

8 x Hot-swap 3.5" SATA3 drive bays; RAID 0, 1, 5, 10

Optional DVD-ROM drive, optional support: 2 x fixed 2.5" NVMe / SSD / HDD, 1 x M.2 support

2 x 1 GbE LAN ports with Intel X722

1000W Redundant Power Supplies Titanium Level (96% efficiency)

Details

Form Factor

2U Rackmount

Dimensions & Weight

Dimensions

3.50" x 17.20" x 25.50"

Weight

35.50 lbs.
