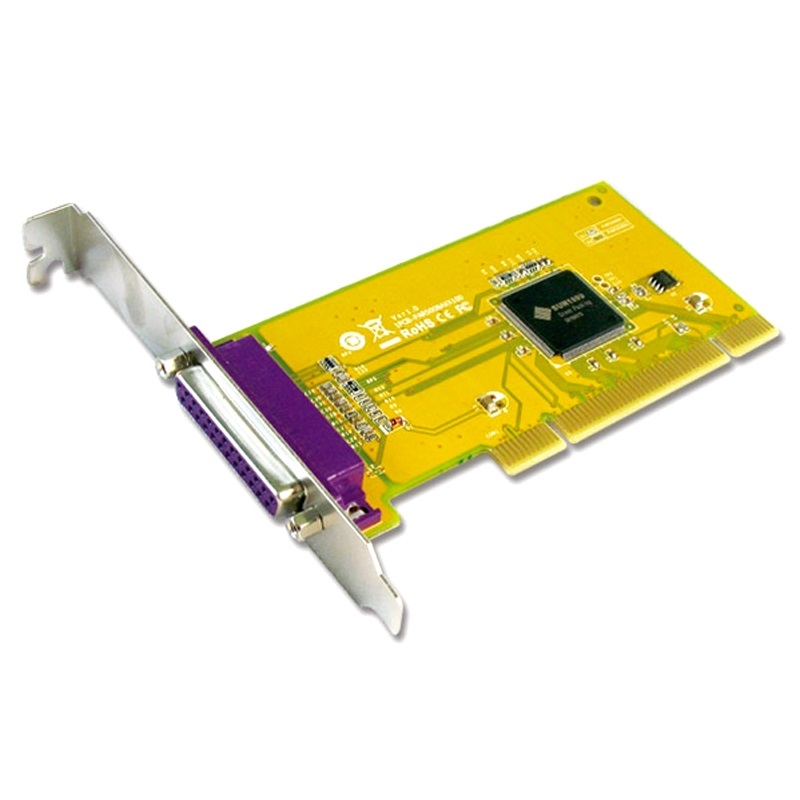

Sunix Par5008A Pci 1-Port Parallel Ieee1284 Card Par5008A
SKU
273645
Brand
MPN
PAR5008A
Warranty
1 Year Manufacturer's return to base
Availability
In stock
$24.00
Buy Now And Earn 24 Reward Points!
Introduction
SUNIX PAR5008A PCI Parallel card enables users to add or expand one additional ECP/EPP/SPP/BPP communication port on their PC-based system for connecting their parallel devices. It is ideal for printers, IC programmers, ZIP Drives, or any Parallel devices*. SUNIX PAR5008A card is designed with SUNIX high performance and realizable parallel connectivity controller, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation applications.
Specifications
Description | |
| Product Description | 1-port IEEE1284 Parallel Universal PCI Board |
Parallel Communication | |
| Interface | IEEE1284 |
| Controller | SUNIX SUN1989 |
| Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| No. of Port | 1-port |
| IRQ & IO | Assigned by System |
| FIFO | 16 byte (Hardware) |
| Signal | SPP/ECP/EPP/BPP |
| Speed | Maximum 1.8MBps |
| PCB connector | DB25 Female |
Driver Support | |
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x |
| DOS | DOS |
Regulatory Approvals | |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS |
| Software | Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) |
Environment | |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension | |
| PCB Dimension | 120 x 61 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
