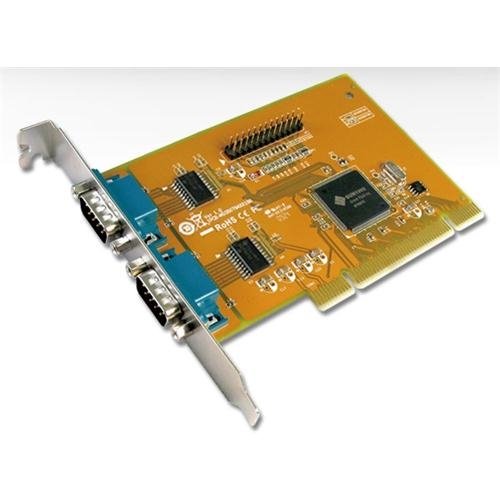

Sunix Mio5079A Pci 2-Port Serial Rs-232 And 1-Port Parallel Ieee1284 Card Mio5079A
SKU
273644
Brand
MPN
MIO5079A
Warranty
1 Year Manufacturer's return to base
Availability
In stock
$49.00
Buy Now And Earn 49 Reward Points!
Introduction
The majority of today´s motherboards are not equipped with any RS-232 or parallel port. With SUNIX MIO5079A Multi I/O board, users can expand two RS-232 and one IEEE1284 parallel ports to their system, allowing them to use serial and parallel devices further. SUNIX MIO5079A is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing the board to be installed in virtually any PC system. Furthermore, SUNIX MIO5079A Multi-IO card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, Linux, making it the best and most economical solution for commercial and industrial applications.
Specifications
Description | |
| Product Description | 2-port RS-232 & 1-port Parallel Universal PCI Multi-I/O Board |
General | |
| Interface | RS-232 and IEEE1284 |
| Controller | SUNIX SUN1989 (16C950 UART Compatible) |
| Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| IRQ & IO | Assigned by System |
Serial Communication | |
| Interface | RS-232 |
| No. of Port | 2-port |
| FIFO | 128 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50 bps to 115.2 Kbps |
| Data bit | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±2KV ESD protection for each signal Human Body Model (HBM) |
| PCB connector | DB9 Male |
Parallel Communication | |
| Interface | IEEE1284 |
| No. of Port | 1-port |
| FIFO | 16 byte (Hardware) |
| Signal | SPP/ECP/EPP/BPP |
| Speed | Maximum 1.8MBps |
| PCB connector | 13 x 2 Pin Header |
| Cable Connector | DB25 Female |
Driver Support | |
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x |
| DOS | DOS |
Regulatory Approvals | |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS |
| Software | Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) |
Environment | |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension | |
| PCB Dimension | 120 x 82 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 2 |
