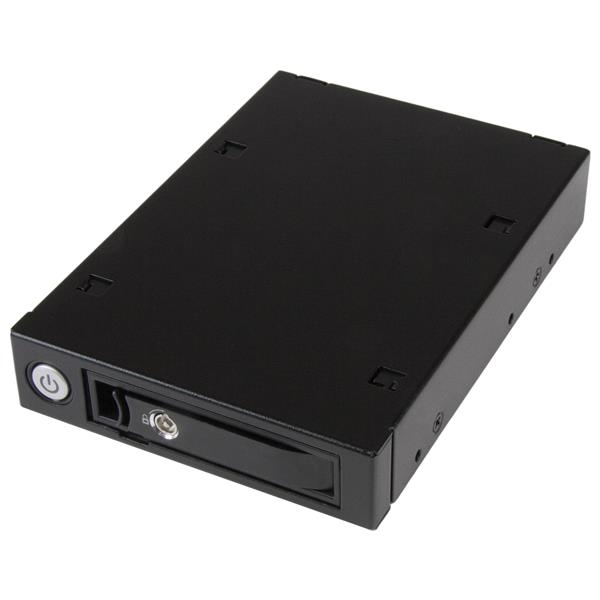

Startech Mobile Rack Backplane For 2.5in Sata/ Sas Drive Satsasbp125
Easily connect and hot swap a SSD or HDD from a 3.5in bay. Now it's easy to increase the storage capabilities of your server or PC while protecting data integrity. This one-bay mobile rack backplane lets you install and easily remove a 2.5in SAS or SATA HDD or SDD in a 3.5in external expansion bay on your desktop PC or server. It's ideal for system integrators and administrators looking for flexible management of data storage.
Easy compatibility
The backplane provides an easy, convenient way to install and swap drives between desktops or servers. It supports both SAS and SATA 2.5in drives ranging from 5 to 15mm in height. To maximize the performance of your hard drives, the mobile rack supports SAS II and SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers.You can lock the removable steel tray in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drive and the bay.
Convenient, interchangeable drive trays
Many fast-paced work environments require drives to be removed regularly. This convenient backplane lets you hot swap between systems quickly, without shutting down.
The included drive tray is interchangeable, working with both the single-bay backplane and the 4-bay backplane (SATSASBP425) so you can hot swap between systems for easy file access.
Vented metal design for durability
Engineered with high quality metal, the robust metal housing delivers reliable performance. The venting helps to ensure proper air flow to assist with heat dissipation.
The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drives and the bay.
The SATSASBP125 single-bay backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Colour: Black
Colour: Silver
Drive Interface: SAS
Drive Interface: Serial ATA/600
Form Factor: Internal
Host Interface: Serial ATA/600
Number of 1.8" Bays: No
Number of 2.5" Bays: 1
Number of 2.5"/3.5" Bays: No
Number of 3.5" Bays: No
Number of 5.25" Bays: No
Number of Total Expansion Bays: 1
Product Type: Drive Enclosure
Wireless LAN: No
General Information
Brand Name: StarTech.com
Manufacturer Part Number: SATSASBP125
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information: Easily connect and hot swap a SSD or HDD from a 3.5in bay. Now it's easy to increase the storage capabilities of your server or PC while protecting data integrity. This one-bay mobile rack backplane lets you install and easily remove a 2.5in SAS or SATA HDD or SDD in a 3.5in external expansion bay on your desktop PC or server. It's ideal for system integrators and administrators looking for flexible management of data storage.
Easy compatibility
The backplane provides an easy, convenient way to install and swap drives between desktops or servers. It supports both SAS and SATA 2.5in drives ranging from 5 to 15mm in height. To maximize the performance of your hard drives, the mobile rack supports SAS II and SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers.You can lock the removable steel tray in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drive and the bay.
Convenient, interchangeable drive trays
Many fast-paced work environments require drives to be removed regularly. This convenient backplane lets you hot swap between systems quickly, without shutting down.
The included drive tray is interchangeable, working with both the single-bay backplane and the 4-bay backplane (SATSASBP425) so you can hot swap between systems for easy file access.
Vented metal design for durability
Engineered with high quality metal, the robust metal housing delivers reliable performance. The venting helps to ensure proper air flow to assist with heat dissipation.
The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drives and the bay.
The SATSASBP125 single-bay backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity: 1
Product Name: Mobile Rack Backplane for 2.5in SATA/SAS Drive
Product Type: Drive Enclosure
I/O Expansions
Number of 1.8" Bays: No
Number of 2.5" Bays: 1
Number of 2.5"/3.5" Bays: No
Number of 3.5" Bays: No
Number of 5.25" Bays: No
Number of Total Expansion Bays: 1
Interfaces/Ports
Drive Interface: SAS
Serial ATA/600
Host Interface: Serial ATA/600
Network & Communication
Wireless LAN: No
Physical Characteristics
Colour: Black
Silver
Depth: 141 mm
Form Factor: Internal
Height: 25 mm
Material: Aluminium
Steel
Weight (Approximate): 435 g
Width: 101 mm
| Hardware | |
| Number of Drives | 1 |
| Supported Drive Height(s) | 12.5mm |
| 15mm | |
| 5mm | |
| 9.5mm | |
| Indicators | |
| LED Indicators | Drive power and activity |
| Packaging Information | |
| Shipping (Package) Weight | 548 g [19.3 oz] |
| Performance | |
| Hot Swap Capability | Yes |
| Insertion Rating | 50,000 |
| Max Drive Capacity | Tested with hard drives up to 2TB at 7200 RPM |
| Maximum Data Transfer Rate | 6 Gbps |
| Noise Level | 20 bBA |
| Port Multiplier | No |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Color | Black & Silver |
| Enclosure Type | Aluminum and Steel |
| Max Drive Height | 15 mm [0.6 in] |
| Product Height | 25 mm [1 in] |
| Product Length | 141 mm [5.6 in] |
| Product Weight | 435 g [15.4 oz] |
| Product Width | 101 mm [4 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Flammability rating: UL94 - V0 |
| What's in the Box | |
| Included in Package | 1-Bay 2.5in SATA/SAS Hard Drive Backplane |
| 2.5? HDD/SSD Drive Tray | |
| Backplane mounting screw kit | |
| Drive bay keys | |
| Drive mounting screw kit | |
| Quick install guide | |
| SATA cable | |
| Hardware | |
| Number of 2.5 inch bays | 1 |
| Interface | SATA |
| SAS | |
| Front Door Key Lock | Yes |
| Drive Size | 2.5in |
| Drive Installation | Removable |
| Compatible Drive Types | SAS & SATA |
| Environmental | |
| Storage Temperature | -20?C to 55?C (-4?F to 131?F) |
| Operating Temperature | 0?C to 55?C (23?F to 95?F) |
| Humidity | 5%~65% RH |
| Connector(s) | |
| Host Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
Now it?s easy to increase the storage capabilities of your server or PC while protecting data integrity. This one-bay mobile rack backplane lets you install and easily remove a 2.5in SAS or SATA HDD or SDD in a 3.5in external expansion bay on your desktop PC or server. It?s ideal for system integrators and administrators looking for flexible management of data storage.
Easy compatibility
The backplane provides an easy, convenient way to install and swap drives between desktops or servers. It supports both SAS and SATA 2.5in drives ranging from 5 to 15mm in height. To maximize the performance of your hard drives, the mobile rack supports SAS II and SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers.You can lock the removable steel tray in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drive and the bay.
Convenient, interchangeable drive trays
Many fast-paced work environments require drives to be removed regularly. This convenient backplane lets you hot swap between systems quickly, without shutting down.
The included drive tray is interchangeable, working with both the single-bay backplane and the 4-bay backplane (SATSASBP425) so you can hot swap between systems for easy file access.
Vented metal design for durability
Engineered with high quality metal, the robust metal housing delivers reliable performance. The venting helps to ensure proper air flow to assist with heat dissipation.
The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drives and the bay.
The SATSASBP125 single-bay backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support.
