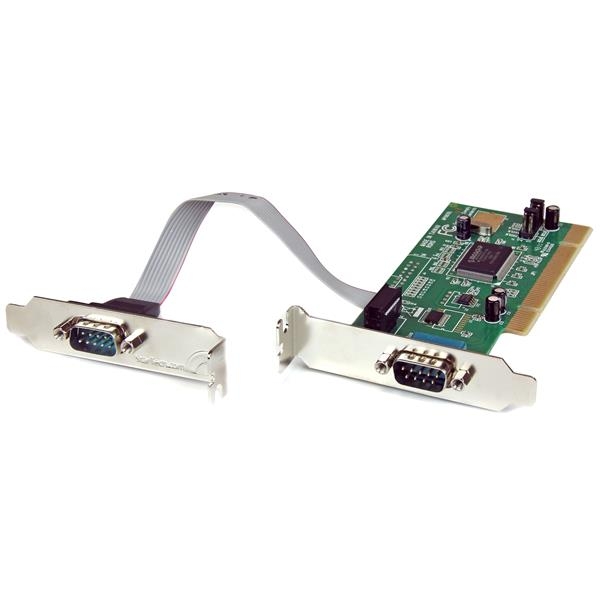

Startech 2 Port Pci Low Profile Rs232 Serial Adapter Card With 16550 Uart Pci2s550_lp
2 Port PCI Low Profile RS232 Serial Adapter Card with 16550 UART
by Startech
Category: Connectivity Devices
Sub Category: Serial/Parallel & I/O Cards
Product Type: Serial Cards
Perfect for connecting serial modems, POS devices, PDAs, digital cameras,
printers, ISDN terminal adapters and more, to your system, the adapter card
supports IRQ sharing and operates flawlessly with Windows 7, Server 2008 R2,
Vista, XP, Server 2003, 2000, ME, 98, 95, NT4, 3.1, DOS and Linux.The card can
be connected in minutes through simple plug and play installation and is backed
by StarTech.com's lifetime warranty and FREE LIFETIME tech support.
Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI
Number of Ports: 2
Product Type: Serial Adapter
| Connector(s) | |
| Connector Type(s) | PCI (5V, 32-bit) Male |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | -10?C to 80?C (14?F to 176?F) |
| Storage Temperature | -20?C to 100?C (-4?F to 212?F) |
| Hardware | |
| Bus Type | PCI / PCI-X (5 / 3.3V) |
| Card Type | Low Profile |
| Chipset ID | ASIX - MCS9835CV |
| Interface | Serial |
| Port Style | Integrated on Card |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.3 lb] |
| Performance | |
| FIFO | 16 Byte |
| Max Baud Rate | 115.2 Kbps |
| MTBF | 6,548,788 Hours |
| Serial Protocol | RS-232 |
| Physical Characteristics | |
| Product Height | 20 mm [0.8 in] |
| Product Length | 120 mm [4.7 in] |
| Product Weight | 55 g [1.9 oz] |
| Product Width | 55 mm [2.2 in] |
| Software | |
| OS Compatibility | Windows? DOS, 95, 98SE, 2000, CE 5.0 / 6.0, Embedded System 2009, XP Embedded, POS Ready 2009, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2016 Linux 3.5.x to 4.11.x LTS Versions only |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low profile bracket | |
| PCI Low Profile 2 Port Serial Card | |
| Screws | |
This 2 Port 16550 Serial Card can be installed in a PCI slot to add two serial ports - a cost-effective solution for connecting any new serial device or old legacy serial device, with data transfer rates of up to 115.2 Kbps. The serial card features a low profile bracket, suitable for installation in low profile/small form factor computer cases.
Perfect for connecting serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters and more, to your system, the adapter card supports IRQ sharing and operates flawlessly with Windows® 7, Server 2008 R2, Vista, XP, Server 2003, 2000, ME, 98, 95, NT4, 3.1, DOS® and Linux®.
The card can be connected in minutes through simple plug and play installation and is backed by StarTech.com?s lifetime warranty and FREE LIFETIME tech support.
