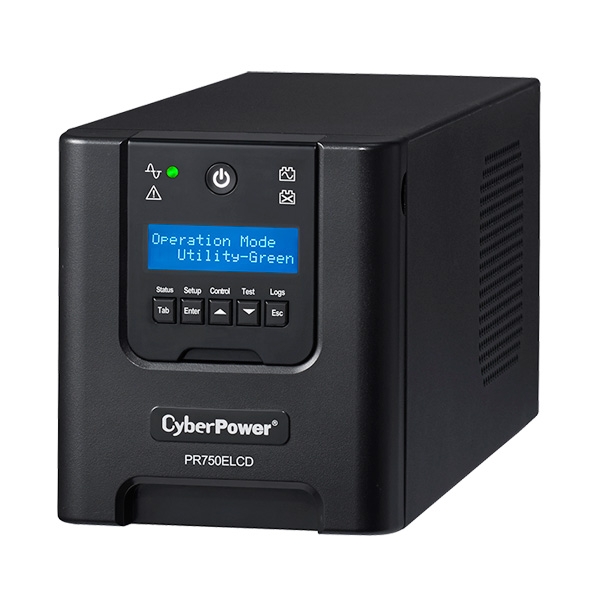

CyberPower Systems PROFESSIONAL TOWER SERIES 750VA (675W) UPS WITH LCD PR750ELCD
The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipments, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sine Wave output and Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide highest convenience and flexibility under different management scenarios.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel® Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Features & Benefits：
- GreenPower UPS™ Technology
- Pure Sine Wave Output
- Line-Interactive UPS Topology
- Rack/Tower Convertible Configurations
- Automatic Voltage Regulator (AVR)
- EMI, RFI, Surge and Lightning Spike Protection
- Critical Load Outlet
- Auto-Restart/Auto-Charge
- Emergency Power Off (EPO) Port
- Multifunction LCD Readout
- Rotatable LCD Indicator
- USB & Serial Connectivity Ports
- Hot-Swappable Battery Packs
- User-Replaceable Batteries
- SNMP/HTTP Remote Management Capability (Optional)
- PowerPanel® Business Edition
- Equipment Protection Policy up to 100,000 Euros
| Model | PR750ELCD |
| Capacity (VA/Watts) | 750VA / 675W |
| Energy- Saving Technology | Yes |
| Input | |
| Frequency Range | 47 ~ 63 Hz (auto-sensing) |
| Input Plug Type | IEC 320 C14 |
| Output | |
| UPS Outlets | (6) IEC |
| On Battery Output Voltage | Pure Sine Wave at 230Vac +/- 5% |
| On Battery Output Frequency | 50Hz / 60 Hz +/- 1% |
| Transfer Time (Typical) | 4ms |
| Overload Protection | On Utility : Internal Current Limiting & Circuit Breaker On Battery : Internal Current Limiting |
| AVR | Double Boost, Single Buck |
| Surge Protection and Filtering | |
| Surge Protection | Yes |
| Physical | |
| Maximum Dimensions(H x W x D)(mm) | 162 x 349 x 138 |
| Weight(kg) | 12.3 |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery | 12V 7AH x 2 |
| User Replaceable | Yes |
| Typical Recharge Time | 8 Hours |
| Runtimes | |
| Half-Load/ Full-Load(mins) | 12/4 |
| Status Indication | |
| Indicators | Power On, Online, On Battery, Fault, Replace Battery |
| Audible Alarms | On Battery, Low Battery, Overload |
| Multi-Function LCD Display | Yes |
| Communication | |
| Power Management Software | PowerPanel® Business Edition |
| Management | |
| Self-Test | Yes |
| Auto-Charge/Auto-Restart | Yes |
| COM Interface | Yes |
| USB | Yes |
| SNMP/HTTP Capable | Optional |
