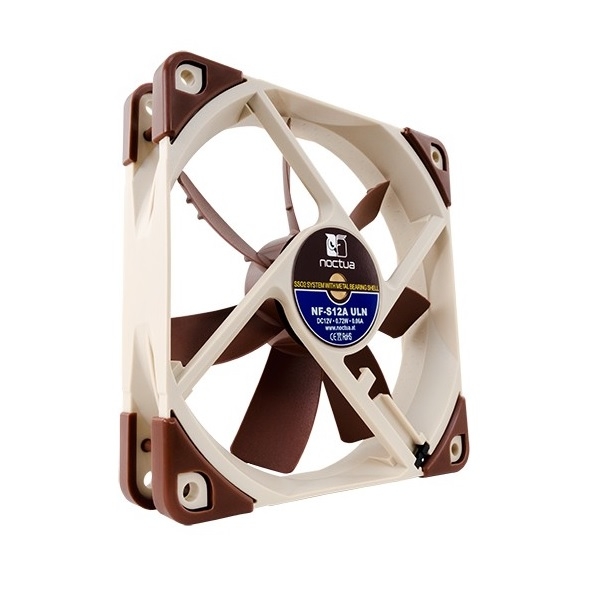

Noctua 120mm Nf-s12a Uln 800rpm Fan Nf-s12a-uln

SKU
146377
Brand
Noctua
Manufacturer Link
MPN
NF-S12A-ULN
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
$41.00
Buy Now And Earn 41 Reward Points!
Add to Compare

The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The ULN version provides super-slow 800/600rpm speed settings for ultra-low-noise applications and highly noise sensitive users who demand near-silent operation. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for quiet case cooling.

Details
　
Award-winning S12 design

Award-winning S12 design

The NF-S12A features the third evolution of Noctua's classic Straight Blade Design that has earned its S12 series countless recommendations from hardware journalists and enthusiasts around the world. Further optimised for even better airflow/noise efficiency, it makes the NF-S12A an ideal quiet case fan.
　
Anti-Stall Knobs

Anti-Stall Knobs

The NF-S12A's Anti-Stall Knobs reduce flow separation phenomena in medium to high impedance situations and thereby increase the fan's stall margin. This means that the NF-S12A is even more versatile than its renowned predecessor and can achieve better performance on heatsinks and radiators.
　
AAO Frame

AAO Frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
　
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
　
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
　
Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
　
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-S12A remarkably quiet even at very close distances.
　
2 speed settings for maximum quietness

2 speed settings for maximum quietness

Providing 800 and 600 rpm speed settings via the supplied adapter, the ULN (Ultra-Low-Noise) version is tailor made for serious silent enthusiasts who demand super-slow running speeds and utmost quietness of operation.
　
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
　
SSO2 Bearing

SSO2 Bearing

The NF-S12A features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
　
Metal bearing shell

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-S12A sports a CNC milled bearing shell made entirely from brass.
　
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-S12A features an MTBF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.
FAN Specification
　
Size
120x120x25 mm
Connector
3-Pin
Bearing
SSO2
Blade Geometry
S-Series with Anti-Stall Knobs
Frame Technology
AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%)
800 RPM
Rotational Speed with L.N.A. (+/- 10%)
600 RPM
Airflow
74,3 m³/h
Airflow with L.N.A.
57,5 m³/h
Acoustical Noise
8,6 dB(A)
Acoustical Noise with L.N.A.
6,7 dB(A)
Static Pressure
0,62 mm H₂O
Static Pressure with L.N.A.
0,44 mm H₂O
Max. Input Power
0,72 W
Max. Input Current
0,06 A
Voltage
12 V
MTBF
> 150.000 h
Scope of Delivery
  • Low-Noise Adaptor (L.N.A.)
  • 3:4 Pin Adaptor
  • 30cm Extension Cable
  • 4 Vibration-Compensators
  • 4 Fan Screws
Warranty
6 years
Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

Featuring a further refined blade design with anti stall knobs that work in tandem with the new advanced acoustic optimisation frame, the NF-S12A improves the airflow & noise efficiency of its renowned predecessor by up to eight percent. The ULN version provides super low 800 & 600rpm speed settings for near silent operation. Its superb running smoothness, SSO2 bearing and Noctuas trusted premium quality make it an elite choice for quiet case cooling.

Highlights:

* Manufacturers model code: NF-S12A ULN.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 800.
* CFM: 44.
* dBA: 8.6.
* Fan width: 120mm.
* Fan depth: 25mm.
* Bearing type: SSO2 (Self Stabilising Oil2).
* Connector: 3Pin.
* Warranty: 6 years.

Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
