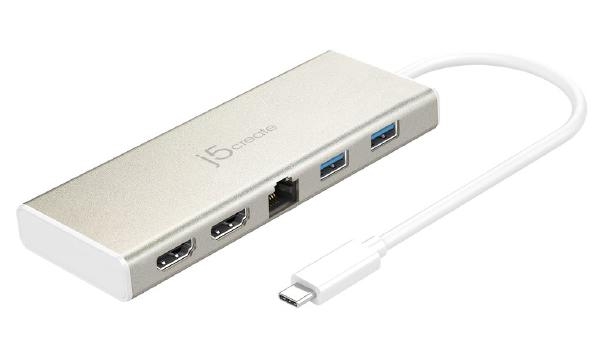

J5Create Jcd381 Usb-C Dual Hdmi 2K/ 4K Mini Dock (Usb-C To 2 X Hdmi Gigabit Ethernet Rj-45 2 X

SKU
272437
Brand
J5create
Manufacturer Link
MPN
JCD381
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
Special Price $157.00 Regular Price $183.00
Buy Now And Earn 157 Reward Points!

QUICK OVERVIEW

USB 3.0) JCD381
Add to Compare
Display interface
  • • When using one HDMI™ port the max resolution is: 4K @ 30 Hz
  • • When using two HDMI™ ports the max resolution is: 1080p @ 60 Hz
  • • Easily add an additional display through a USB™ 3.0 and HDMI™ connection
  • • Video playback performs at 1080p HD with a resolution of up to 4K @ 30 Hz
  • • Add an additional monitor without adding an expensive, internal video card, avoiding complicated installation
  • • Hot swappable USB™ enables you to add or remove monitors without rebooting your system
  • • Move and view your large spreadsheets across two screens without overlapping windows
  • • Multitask with larger landscape/desktop space
  • • Ideal for viewing multiple windows at the same time

USB™ 3.0 SuperSpeed
  • • Transfer rates of up to 5 Gbps enables bulky file backup
  • • Backwards compatible with USB™ 2.0 and USB™ 1.1 devices
  • • Hot-swapping connect/disconnect without powering down
  • • Great for multitasking in a wide variety of applications including: phone centers, stock markets, hospitals, graphic design, editing, accounting, etc.
  • • A must have for surfing the web and working on your e-mail/Facebook/Twitter accounts all at the same time.

Gigabit Ethernet
  • • Quickly add a Gigabit Ethernet port
  • • IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
  • • Activity and Link LED indicators

j5 Advantages
  • • Add multiple screens, one up to 4K high resolution.
  • • Add 2 additional USB™ ports through your USB-C™ port.
  • • Supports upstream charging & power delivery 2.0 via USB Type-C™ charging port
  • • Use with j5create’s JUP42 PD charging station for ultimate functionality.

　

The USB Type-C™ Dual HDMI™ Mini Dock provides extra connectivity from your computer with 5 Gbps faster transfer speed. This portable docking station allows you to add additional USB™computer peripherals, two HDMI™ monitors (one 4K and one 2K), or a Gigabit LAN through your USB™ port. When connected with a power source, the USB Type-C™ input charging port allows you to continue charging your notebook or smartphone.

USB Type‐C™ is the new standard for connecting PCs and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. The USB Type-C™ has a slim and reversible design, so there is no wrong way to plug it in. USB Type-C™ offers greater power delivery and faster data transfer rates of up to 5 Gbps.

Interface
Host Interface USB Type-C™ 3.1 Gen 1 Male
Video Interface HDMI Type-A Female Connector x 2
Ethernet Port Gigabit Ethernet RJ-45 Female Connector
USB™Type-A Port USB™ 3.0 Female connector x 2
USB Type-C™ Port USB Type-C™ Power In x 1 port (Supports upstream charging and power delivery 2.0)
Power
Power Mode Bus-powered or self-powered
Functions
Display Max Resolution 4K @ 30 Hz / 1080p @ 60 Hz
Ethernet Transfer Rate:
1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
Modes:
　
  • Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet or Microsoft wakeup frame
  • Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
  • Supports Jumbo Frame
  • Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
Physical Specifications
Dimensions Main body:
5.1 (W) x 2.1 (H) x 0.6 (D) in.
130 (W) x 54 (H) x 15 (D) mm
Cable length: 7.8 in.
Cable length: 20 cm
Weight Approximately:
0.25 lbs/ 113.5 g


　
Aspect Ratio Resolution Color Depth
Wide Screen Display
16:9 3840 x 2160 32 bits
8:5 2560 x 1600 32 bits
16:9 2048 x 1152 32 bits
16:10 1920 x 1200 32 bits
16:9 1920 x 1080 32 bits
16:10 1680 x 1050 32 bits
16:9 1600 x 900 32 bits
16:10 1440 x 900 32 bits
16:9 1600 x 900 32 bits
16:10 1440 x 900 32 bits
16:9 1366 x 768 32 bits
16:10 1360 x 768 32 bits
16:9 1280 x 800 32 bits
16:10 1280 x 768 32 bits
16:9 1280 x 720 32 bits
Standard Display
4:3 1600 x 1200 32 bits
4:3 1400 x 1050 32 bits
5:4 1280 x 1024 32 bits
4:3 1280 x 960 32 bits
4:3 1152 x 864 32 bits
4:3 1024 x 768 32 bits
4:3 800 x 600 32 bits
4:3 640 x 480 32 bits


　

System Requirements

    • macOS® X 10.8 or later
    • Available USB™ 3.0/2.0 port (USB™ 3.0 recommended)
    • Available USB Type-C™ port (USB™ 3.1 is recommended)
    • Available USB™ power delivery over USB Type-C™ to support upstream charging
    • Microsoft® Windows® 10/ 8.1/ 8/ 7 (32-bit or 64-bit) compatible
    • Office applications / Web browsers
      CPU: Intel® Core i3 Dual Core 2.8 GHz
      RAM: 2 GB memory or higher

　
    • One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
      CPU: Intel® Core i5 Quad Core
      RAM: 4 GB memory or higher

　
  • One 4K Ultra HD or two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
    CPU: Intel® Core i7 Quad Core
    RAM: 8 GB memory or higher
    Graphics card: Intel® HD Graphics 4000/ ATI HD 7xxx/ NVIDIA 5XXM or higher

Note for Video Player:
Windows® 8.1/8/7 users: Windows® Media Player is recommended for video playback
Windows® 10 users: Movies & TV is recommended for video playback

　

Package Contents

  • USB Type-C™ Dual HDMI™ Mini Dock (JCD381)
  • Driver CD
  • Quick Installation Guide
The USB Type-C Dual HDMI Mini Dock provides extra connectivity from your computer with 5 Gbps faster transfer speed. This portable docking station allows you to add additional USB computer peripherals, two HDMI monitors (one 4K and one 2K), or a Gigabit LAN through your USB port. When connected with a power source, the USB Type-C input charging port allows you to continue charging your notebook or smartphone.
⚫Dual Display HDMI 4K + 2K
⚫Power Delivery
⚫2-Port USB 3.0 supports transfer speeds up to 5 Gbps.
⚫Small, Compact, and Lightweight
⚫Supports two displays - max resolution: 4K @ 30 Hz / 1080p @ 60 Hz
⚫IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
