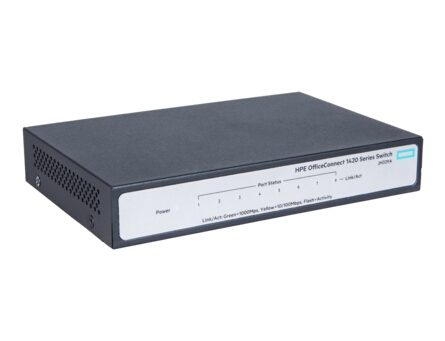

Hpe Hp 1420 8g Switch Jh329a
SKU
226106
Brand
MPN
JH329A
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Special Price
$64.00
Regular Price
$65.00
Buy Now And Earn 64 Reward Points!
The HPE OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity.
| DEVICE FEATURES | |
|---|---|
| Quality of Service (QoS): | * IEEE 802.1p prioritization |
| Standards: | * IEEE 802.1p Priority |
| DIMENSIONS | |
|---|---|
| Depth (mm): | 104.9 |
| Height (mm): | 26.9 |
| Weight (Kg): | 0.5 |
| Width (mm): | 157.7 |
| OTHER FEATURES | |
|---|---|
| Layer Support: | 2 |
| Management: | Unmanaged |
| Network Technology: | 10/100/1000 |
| Other Features: | * Unmanaged plug-and-play Gigabit Ethernet switching |
| PERFORMANCE | |
|---|---|
| Forwarding Rate: | 11.8 Mpps |
| Jumbo Frame Size: | 9216 Bytes |
| Mac Address: | 4096 entries |
| Packet Buffer: | 1.5 MB |
| Switching Fabric: | 16 Gbps |
| PORTS | |
|---|---|
| Gigabit Ethernet Port: | Yes |
| No. of Ports: | 8 |
| Type: | 10/100/1000 |
| POWER | |
|---|---|
| Input Voltage: | 100 - 240 Volt |
| Output Power: | 4.5 Watt |
| PRODUCT | |
|---|---|
| Brand Name: | HP |
| Form Factor: | 1U |
| Manufacturer Web Site: | http://www.hp.com/ |
| Product Model: | 1420-8G |
| Product Type: | Gigabit Ethernet Switch |
| Marketing Text | The HPE OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. |
| PI Date | Jul 2016 |
| Brand Name | HP |
| Manufacturer Web Site | http://www.hp.com/ |
| Form Factor | 1U |
| Product Model | 1420-8G |
| Product Type | Gigabit Ethernet Switch |
| Mac Address | 4096entries |
| Forwarding Rate | 11.8Mpps |
| Packet Buffer | 1.5MB |
| Switching Fabric | 16Gbps |
| Jumbo Frame Size | 9216Bytes |
| Gigabit Ethernet Port | Yes |
| No. of Ports | 8 |
| Type | 10/100/1000 |
| Standards | * IEEE 802.1p Priority * IEEE 802.3ab 1000BASE-T * IEEE 802.3ae 10-Gigabit Ethernet * IEEE 802.3af Power over Ethernet * IEEE 802.3at Power over Ethernet Plus * IEEE 802.3az Energy Efficient Ethernet * IEEE 802.3i 10BASE-T Ethernet over twisted pair IEEE 802.3u 100BASE-TX Fast Ethernet, 100BASE-FX with autonegotiation IEEE 802.3x Flow Control IEEE 802.3z 1000BASE-X Gigabit Ethernet over fiber |
| Quality of Service (QoS) | * IEEE 802.1p prioritization delivers data to devices, based on the priority and type of traffic * DiffServ Code Point (DSCP) support allows real-time traffic prioritization, based on L3 TOS/DSCP parameters |
| Input Voltage | 100 - 240Volt |
| Output Power | 4.5Watt |
| Depth (mm) | 104.9 |
| Height (mm) | 26.9 |
| Width (mm) | 157.7 |
| Weight (Kg) | 0.5 |
| Layer Support | 2 |
| Management | Unmanaged |
| Network Technology | 10/100/1000 |
| Other Features | * Unmanaged plug-and-play Gigabit Ethernet switching * Green features for low power consumption * Fanless design for silent operation * Quality of Service capabilities for improved network efficiency |
