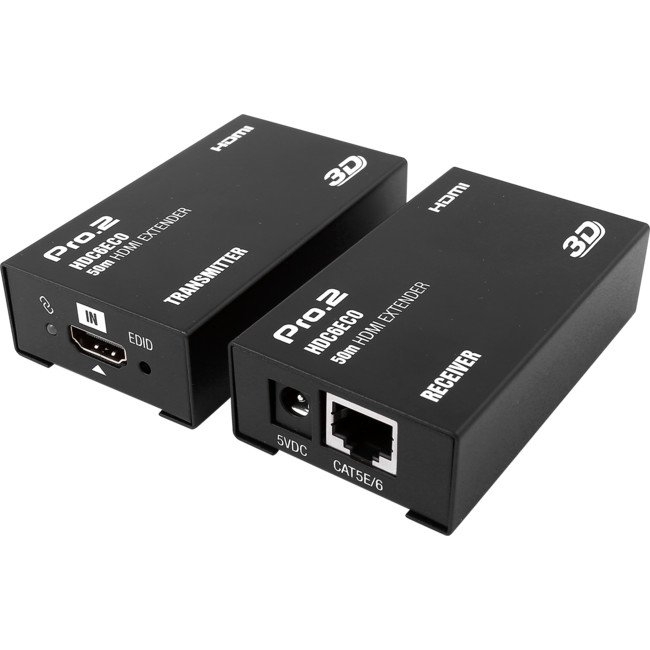

4cabling Hdmi Over Single Cat6 Extender 006.008.1022
Details
The HDMI over Single Cat6 Extender cheaply and efficiently does just that: it extends your HDMI signal over 50m via single Cat5e/6 without signal loss. Each set includes one transmitter and one receiver, and the set up is so simple, there is no need for configuration. Within no time at all you will be able to run HDMI signals to another room in your house or office space without expensive masses of HDMI cables.
FEATURES- Transmit HDMI signal over 50m via single Cat5e/6 without signal loss
- Follows standard of IEEE-568B
- Supports high definition resolution up to Full HD 1080p
- Supports Dolby True-HD, DTS-HD Master audio
- EDID reading and saving from display
- Bandwidth can be up to 6.75 Gbps
- Deep Colour up to 36-bit
- 3D compatible
- 2x DC 5V 1A power supply (included)
- Main Unit: Transmitter & Receiver
- DC 5V 1A x2PCS
- Operating Instructions
WARRANTY
1 year limited warranty.
Specifications
| Operating Temperature Range: | −5 to +35°C |
|---|---|
| Operating Humidity Range: | 5 to 90%RH (No Condensation) |
| Input Video Signal: | 0.5-1.0 Volts p-p |
| Input DDC Signal: | 5 volts p-p(TTL) |
| Support Video Format DTV/HDTV: | 480i/576i/480P/576P/720P/1080i/1080P 3D video |
| Video Output: | HDMI, HDCP |
| Support Audio Format: | DTS-HD Master Audio, Dolby true-HD, etc. |
| Transmission Distance: | 1080P 8-bit 50m (Maximum) over single CAT5E/6 24AWG Solid-core |
| Power consumption: | 5 Watts (Maximum) |
| Dimension (L×W×H): | 83x48x25mm |
| Net Weight: | 250g (Pair) |
