Model

Brand

EDIMAX

Model

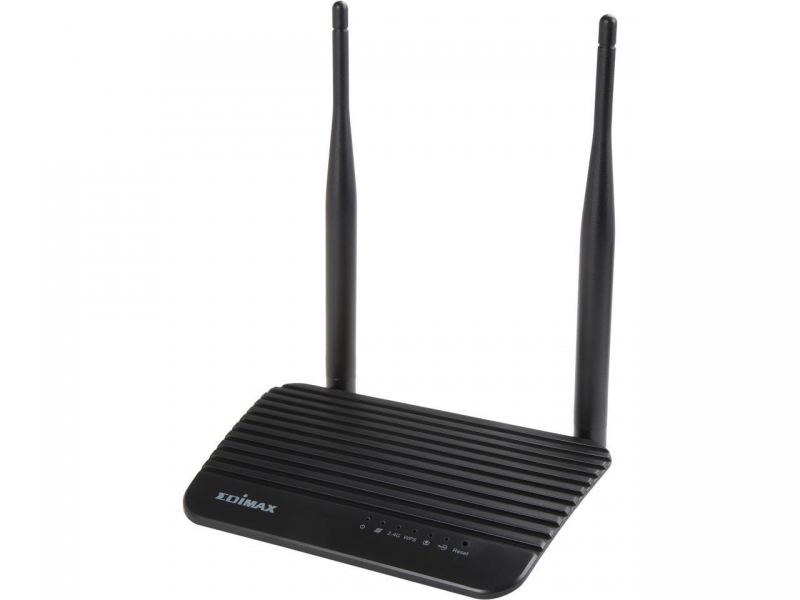

BR-6428NS V4

Details

Network Protocols

PPPoE, Static IP, Dynamic IP, PPTP and L2TP

Security

NAT / NAPT IP sharing
64 / 128-bit WEP encryption and WPA-PSK and WPA2-PSK security
DHCP server / client
QoS for critical operations
SPI anti-DoS firewall

WPA/WPA2

WPA2

LEDs

Power, WAN, Wireless, WPS, new firmware notice and firmware upgrade status

Buttons

WPS / Reset button

Wireless Data Rates

Up to 300Mbps

Antenna

2 x High-gain antennas

Receiver Sensitivity

11b (11 Mbps): -85 +/- 2 dBm
11g (54 Mbps): -68 +/- 2 dBm
11n (20 MHz, MCS7): -68 +/- 2 dBm
11n (40 MHz, MCS7): -68 +/- 2 dBm

Interface

1 x RJ-45 Fast Ethernet WAN port
4 x RJ-45 Fast Ethernet LAN port

VPN support

IPSec / PPTP

Power Adapter

DC 5V, 1A

Dimensions

23.88 mm x 145.03 mm x 87.88 mm

Weight

140.61 g

Temperature

0°C - 40°C (32°F - 104°F)

Humidity

10% - 90% (Non-Condensing)

Features

Features

5-in-1 Router, Access Point, Range Extender, Wi-Fi Bridge & WISP

Smart iQ Setup for smart, automatic and quick installation with no CD required

High Gain Antenna: Enhances wireless range and coverage

Guest network: Provides connectivity while isolating guests from your primary network

Easy One-Click Setup with Wi-Fi Protected Setup (WPS) button

Packaging

Package Contents

Broadband router (main body, 1 pcs)
Quick Installation Guide (1 pcs)
One CD-ROM (Including the Setup Wizard, Multi-languages Quick Installation Guide and User Manual)
5V DC power adapter (1 pcs)
Ethernet Cable
