Aten Displayport (m) To Hdmi (f) Active 4k Adapter Vc986-at
VC986

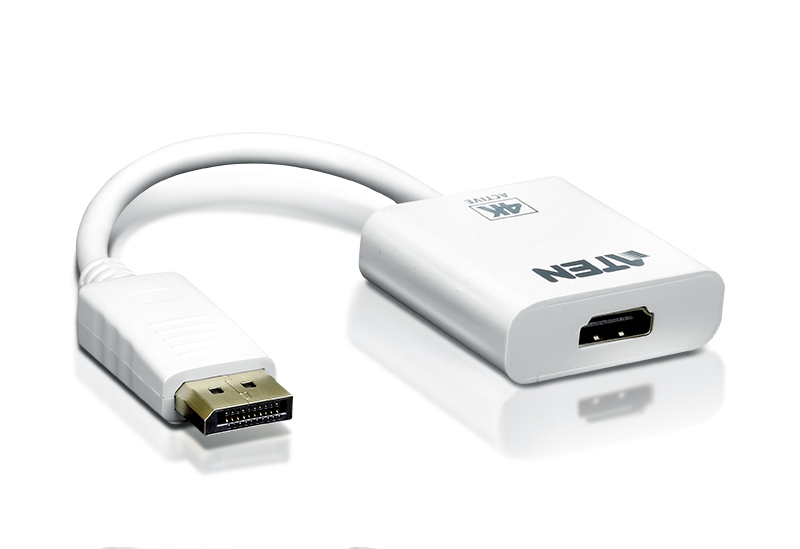

The VC986 is an active DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.
The ATEN VC986 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.
- Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
- Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
- Supports AMD Eyefinity™ Technology (multi-screen setups)
- Audio supported
- No software or driver installation required
| Video Input | |
| Interfaces | 1 x DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Video | |
| Max. Pixel Clock | 297 MHz |
| Max. Resolution | 3840x2160@30Hz, 1920 x 1200@60Hz. |
| Compliance | DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3 |
| Audio | |
| Output | 1 x HDMI Type A Female (Black) |
| Environmental | |
| Operating Temperature | 0 - 50 ºC |
| Storage Temperature | -20–60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
The VC986 is an active DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.
The ATEN VC986 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.
* Dual-mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.
- Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
- Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
- Supports AMD Eyefinity™ Technology (multi-screen setups)
- Audio supported
- No software or driver installation require
