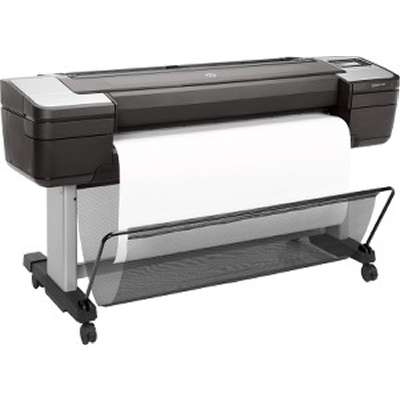

main product photo

HP DesignJet T1700 44-in dual roll Postscript Printer 1VD88A

SKU
261100
Brand
Hp
Manufacturer Link
MPN
1VD88A
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
Special Price $10,304.00 Regular Price $11,971.00
Buy Now And Earn 10304 Reward Points!
Add to Compare

ecure, empowering printer for CAD/GIS workgroups

Confidently take CAD, GIS color reproduction to the next level with a 44-in HP DesignJet printer that delivers powerful security features, high productivity on even the most complex files, and bright and precise colors

Functions
  • Print
Functions
  • Print
Speed specifications
Print time line drawing (economode, A1 plain paper)
  • 26 sec/page[1]
Print speed line drawing (economode, A1 plain paper)
  • 116 pages per hour[1]
Memory specifications
Memory
  • 128 GB (virtual)[4]
Internal Storage
  • 500 GB self-encrypting
Technical specifications
Print quality (best)
Color: Up to 2400 x 1200 optimized dpi
Print technology
  • HP Thermal Inkjet
Number of print cartridges
  • 6 (cyan, magenta, yellow, photo black, matte black, gray)
Ink types
  • Dye-based (C, M, Y, PK, G)
  • pigment-based (MK)
Non-printable area (cut-sheet)
  • 3 x 17 x 3 x 3 mm
Guaranteed minimum line width
  • 0.06 mm (ISO/IEC 13660:2001(E))[3]
Line accuracy
  • ±0.1%[2]
Maximum optical density (black)
2.15 maximum black optical density (6 L*min)
(With HP Premium Instant Dry Photo Gloss media with Original HP inks)

Paper handling

　

Finished output handling
  • Sheet feed, two automatic roll feeds, automatic roll-switching, media bin, automatic horizontal cutter
Media types
  • Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl)
Media weights, recommended
  • 60 to 328 g/m²
Media sizes standard (metric rolls)
  • 279 to 1118-mm
Media sizes, custom
  • 210 x 279 to 1118 x 1676 mm
Roll external diameter
  • 135 mm
Media thickness
  • Up to 31.5 mil

Connectivity

　

HP ePrint capability
  • Yes
Connectivity, standard
  • Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab)
  • USB Type-A host port
Print languages
  • Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4

Power and operating requirements

　

Power consumption
  • < 100 W (printing)
  • < 24 W (ready)
  • < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep)
  • 0.1 W (off)
Operating temperature range
  • 5 to 40ºC

Dimensions and weight

　

Minimum dimensions (W x D x H)
  • 1802 x 695 x 998 mm
Weight
  • 74 kg

What's included

　

Warranty
  • 1 Year Limited Warranty (Next Business Day On-Site)
What's in the box
  • HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits
Software included
  • HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS
