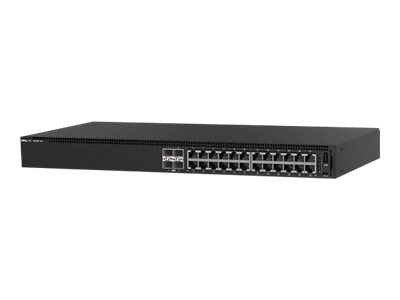

Dell N1124P-On L2 Managed Switch (210-AJIT)
SKU
293129
Brand
MPN
210-AJIT
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Special Price
$1,055.00
Regular Price
$1,066.00
Buy Now And Earn 1055 Reward Points!
Dell N1124P-On L2 Managed Switch Gbe(12) Poe(12) 10Gbe Sfp+(4) Stack(4) 3Y Pro+ 210-Ajit
| Product Description | Dell EMC Networking N1124P-ON - switch - 24 ports - Managed - rack-mountable |
| Device Type | Switch - 24 ports - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (12 PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 190 W |
| Performance | Switching fabric bandwidth: 128 Gbps � Forwarding performance: 96 Mpps |
| Capacity | MAC addresses: 16000 � Aggregated links (dynamic): 144 � LAG groups: 64 � Queues per port: 8 � VLANs supported: 512 � ARP entries: 2048 � NDP entries: 400 � Max ACL rules system-wide: 4000 � ACL: 100 � Maximum ACL rules per interface (IPv4) ingress rules: 1023 � Maximum ACL rules per interface (IPv4) egress rules: 1023 � Maximum ACL rules per interface (IPv6) ingress rules: 1021 � Maximum ACL rules per interface (IPv6) egress rules: 253 |
| MAC Address Table Size | 16000 entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 2, SNMP, RMON, Telnet, HTTP, TFTP, SSH-2 |
| Features | Layer 2 switching, MDI/MDI-X switch, auto-negotiation, port mirroring, IP address filtering, Access Control List (ACL) support, Quality of Service (QoS), front to back airflow, LLDP support, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dual firmware images, redundant fans, MAC and IP-based ACLs support, Time-controlled ACLs support |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3ax |
| Dimensions (WxDxH) | 43.2 cm x 25.4 cm x 4.45 cm |
| Weight | 3.78 kg |
| Manufacturer Warranty | Limited lifetime warranty |
