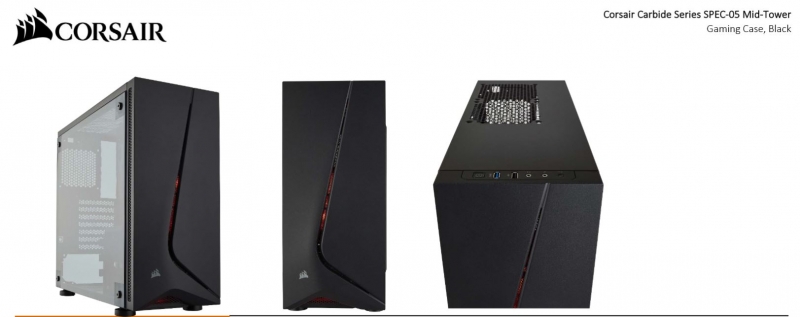

Corsair Carbide Series Spec-05 Mid-tower Gaming Case Black. Supports Mini-itx Matx Atx. Cc-9011138-ww

SKU
264898
Brand
Corsair
Manufacturer Link
MPN
CC-9011138-WW
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
$104.00
Buy Now And Earn 104 Reward Points!
Add to Compare

DISTINCTIVE STYLE FROM EDGE-TO-EDGE

The asymmetrical, smooth-edged design adds bold styling to your build.




HUGE SIDE PANEL WINDOW

A stunning full-side panel window offers an unrestricted window into the heart of your PC.

EXPANSIVE SPACE AND COOLING

With room for up to six* 120mm fans (one red LED fan included), SPEC-05 supports a huge array of cooling options, as well as easy-to-use drive mounts for up to three HDD’s and two SSD’s.

*With hard drive cage removed



HIGH-SPEED CONNECTIVITY

Featuring a front panel USB 3.0 port for high-speed external connections.

BUILT FOR PC BUILDERS

Multiple tie-down points and cable routing holes make it easy to neatly hide your cables behind the motherboard tray, keeping your build looking great and optimizing cooling.



KEEP IT CLEAN

Easily removable dust filters help keep your PC clean and your components running cooler.

CONTENTS AND SPECIFICATIONS



　

  • PACKAGE CONTENTS

  • Carbide Series SPEC-05 Mid-Tower Gaming Case
  • Accessory Kit
  • Quick Start Guide


  • COMPATIBILITY

  • Mini-ITX
  • MicroATX
  • ATX

　

TECHNICAL SPECIFICATIONS

  • Maximum GPU Length: 370mm
  • Maximum PSU Length: 180mm
  • Maximum CPU Cooler Height: 150mm
  • Case Expansion Slots: 7
  • Case Drive Bays: (x2) 3.5in (x3) 2.5in

  • Case Material: Steel
  • Radiator Compatibility: 120mm; 140mm; 240mm
  • Compatible Corsair Liquid Coolers: H55, H60, H75, H80i, H90, H100i

Model

Brand
Corsair
Series
Carbide Series SPEC-05
Model
CC-9011138-WW

Details

Type
ATX Mid Tower
Color
Black
Case Material
Steel, Plastic, Acrylic
With Power Supply
No
Power Supply Mounted
Bottom
Motherboard Compatibility
Micro ATX / ATX / Mini-ITX
Side Panel Window
Yes
Removable Filter
Yes

Expansion

Internal 3.5" Drive Bays
3
Internal 2.5" Drive Bays
2
Expansion Slots
7

Front Panel Ports

Front Ports
1 x USB 2.0 / 1 x USB 3.0 / 1 x Headphone / 1 x Mic

Cooling System

Fan Options
Front: 3 x 120mm or 2 x 140mm fan (1 x 120mm fan included)

Top: 2 x 120mm / 140mm fan

Rear: 1 x 120mm fan (included)
Radiator Options
120mm, 140mm, 240mm

Dimensions & Weight

Max GPU Length Allowance
370 mm
Max CPU Cooler Height Allowance
150 mm
Dimensions (H x W x D)
17.05" x 7.83" x 19.02"
Weight
8.82 lbs.

Additional Info

Features
Minimalist Exterior Design with Edge-to-Edge Side Panel Window: The asymmetrical, smooth-edged design adds bold styling to your build.

Room up to for Five 120mm Fans: Tons of room for excellent cooling potential with one 120mm front fan pre-installed.

Expansive Storage Space: Easy-to-use mounts for up to three HDD’s and two SSD’s.

Clean and Modern Front Panel: Featuring a high-speed USB 3.0 port and additional ports for all modern connections.

Cable Routing Cutouts and Tie Downs: Neatly hide your cables behind the motherboard tray to keep your build looking tidy and out of the airflow path for improved cooling.

Removable, Built-in Dust Filters: Added layer of protection helps keep your PC clean and your components running longer.

Maximum PSU Length: 180mm

Radiator Compatibility:
- Front: 240mm
- Rear: 120mm
The CORSAIR Carbide Series SPEC-05 is a mid tower ATX case gaming case that combines a stylish and distinctive exterior with excellent cooling potential and a straightforward layout. The stunning edge-to-edge window shows off your build and SPEC-05’s roomy interior, able to fit up to five 120mm fans, multiple graphics cards and plentiful storage options. Removable dust filters work to keep your PC clean as the SPEC-05’s styling, while dedicated cable routing cutouts and tie downs make building a great-looking system easy. With subtle design and a straightforward layout, SPEC-05 makes your PC simple to build, with distinctive style.

• CORSAIR Carbide Series SPEC-05 Mid-Tower Gaming Case
• Quick Start Guide
• Storage:
• Maximum CPU Height:
• Maximum PSU Length:
• Radiator Compatibility
370mm
150mm
180mm
- Front: 240mm
- Rear: 120mm
ATX, Micro-ATX, Mini-ITX
- USB 2.0 (x1)
- USB 3.0 (x1)
- Headphone (x1)
- Microphone (x1)
• Maximum GPU Length:
Expansive Storage Space:
Easy-to-use mounts for up to three HDD’s and two SSD’s.
Box Dimensions (L x W x H mm)480mm x 254mm x 541mm / 18.90" x 10" x 21.30"
Product Dimensions (L x W x H mm)
483mm x 199mm x 433mm / 19.02" x 7.83" x 17.05"
