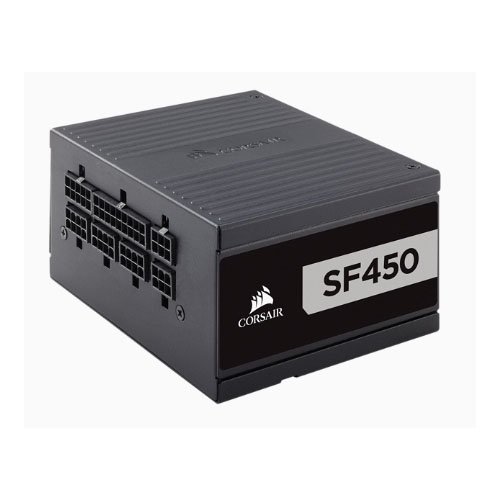

Corsair 450W Sf 80+ Platinum Fully Modular 80Mm Fan Sfx Psu (Not Atx Standard) 7 Years Warranty

SKU
271976
Brand
Corsair
Manufacturer Link
MPN
CP-9020181-AU
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
$209.00
Buy Now And Earn 209 Reward Points!

QUICK OVERVIEW

CP-9020181-AU
Add to Compare

COMPACT SFX FORM-FACTOR

The SF PLATINUM Series’ high-density design delivers high efficiency and low noise in a compact SFX form factor without compromising continuous power, reliability, or quality.



INDIVIDUALLY SLEEVED, FULLY MODULAR CABLES

SF PLATINUM Series power supplies come equipped with premium individually sleeved cables featuring a flexible paracord sleeve, ready to become part of your new high-end PC. The individually sleeved cables also make routing and cable management a breeze, with a lower profile and added flexibility over flat or sleeved cable kits.

80 PLUS PLATINUM CERTIFIED

SF PLATINUM power supplies deliver power with over 92% efficiency to keep energy consumption, noise, temperatures, and your power bill low.



100% ALL JAPANESE 105°C CAPACITORS

By using high-end electrolytic capacitors, SF PLATINUM Series provides the unwavering power and long-term reliability you’ve come to expect from a CORSAIR power supply.



ZERO RPM FAN MODE

At low and medium loads the SF450 PLATINUM’s cooling fan doesn’t spin until you need it, for near-silent operation.

92MM COOLING FAN

The SF PLATINUM Series upgrades the SFX-standard 80mm fan to 92mm, reducing noise and improving performance at demanding loads.



INNOVATIVE INTERNAL DESIGN

SF PLATINUM Series power supplies are built around an innovative new internal design which swaps wires for soldered PCBs, delivering superb performance, incredibly stable voltages and ultra-low ripple and electrical noise.

SFX-TO-ATX BRACKET INCLUDED

SF PLATINUM Series power supplies include an SFX-to-ATX power supply adapter bracket that allows installation into any ATX compatible case. The new bracket offsets the mounting location, allowing for more space inside any standard ATX chassis, so you can tuck your excess cables out of the airflow path.



　

SEVEN-YEAR WARRANTY

CORSAIR offers a seven-year warranty on all SF PLATINUM Series power supplies, your guarantee of reliable operation that will last across several system builds. If you run into any problems during the installation or use of an SF PLATINUM Series power supply, CORSAIR global customer support is ready to help.

CONTENTS AND SPECIFICATIONS



　

  • PACKAGE CONTENTS

  • SF Series High-Performance SFX Power Supply
  • AC power cord
  • DC Modular cable set
  • DC Modular cable storage bag
  • Cable ties
  • Corsair case badge
  • User Manual


  • COMPATIBILITY

  • ATX12V v2.4 and EPS 2.92 standards
ATX Connector

1
Adjustable Single/Multi 12V Rail

No
ATX12V Version

v2.4
Continuous output rated temperature C

50°C
Continuous power W

450 Watts
Fan bearing technology

Rifle Bearing
Fan size mm

92mm
MTBF hours

100;000 hours
Multi-GPU ready

No
Warranty

Seven years
80 PLUS Efficiency

Platinum
PSU Form Factor

SFX
Zero RPM Mode

Yes

Cable Type

Premium Individually-Sleeved, All Black
Dimensions

100mm x 63mm x 125mm
EPS Connector

1
Modular

Fully
PCI-E Connector

2
SATA Connector

4
