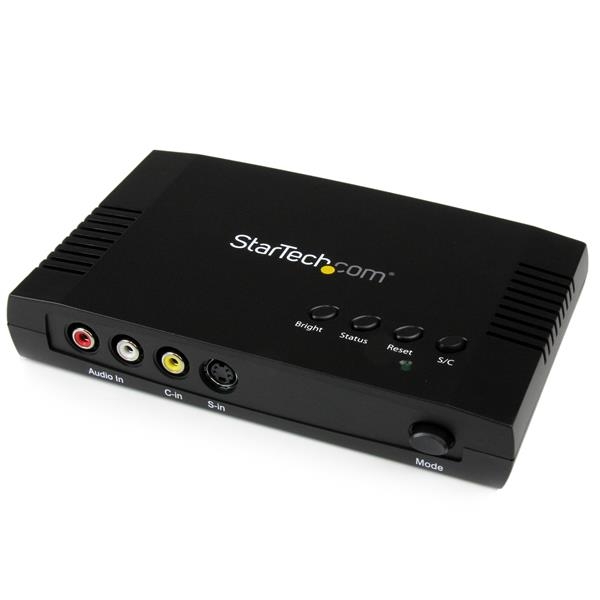

Startech Composite And S-video To Vga Video Converter For Computer Monitors Comp2vga
| General Information | |
|---|---|
| Brand Name: | StarTech.com |
| Manufacturer Part Number: | COMP2VGA |
| Manufacturer Website Address: | http://www.startech.com |
| Manufacturer: | StarTech.com |
| Marketing Information: | This Composite and S-Video to VGA Video Converter lets you play console video games on your computer monitor! With StarTech.com's for Computer Monitors Video Game Jockey, there's no more waiting to use the TV. Simply connect your Xbox, Playstation 2, GAMECUBE, Dreamcast, or other game console to the Video Game Jockey, then plug into your computer monitor, and it's game on! An economical solution that saves the expense of a separate TV and frees up your workspace, the Composite/S-Video to VGA converter supports full audio pass through via your PC speakers or headphones and switches from PC to game display with the push of a button - the adapter even works when the computer is powered off! A versatile video solution, the Composite/S-Video to VGA converter is also a great way to connect VCRs, DVD players and camcorders to your monitor. |
| Product Name: | Composite and S-Video to VGA Video Converter |
| Product Type: | Signal Converter |
| Interfaces/Ports | |
|---|---|
| Audio Line In: | Yes |
| Physical Characteristics | |
|---|---|
| Colour: | Black |
| Technical Information | |
|---|---|
| Frequency Range: | 31.3 kHz to 31.5 kHz Horizontal |
| 50 Hz to 60 Hz Vertical | |
| Maximum Resolution: | 1280 x 1024 |
| Platform Supported: | PC |
| Video Formats: | DVD |
| RGB | |
| S-Video | |
| Connector(s) | |
| Connector A | 3.5 mm Mini-Jack (3 Position) Female Input |
| Composite Video (1 x RCA) Female Input | |
| Stereo Audio (2 x RCA) Female Input | |
| S-Video (4 pin, Mini-DIN) Female Input | |
| Connector B | 3.5 mm Mini-Jack (3 Position) Female Output |
| VGA (15 pin, High Density D-Sub) Female Output | |
| VGA (15 pin, High Density D-Sub) Male Input | |
| Hardware | |
| Active or Passive Adapter | Active |
| Audio | Yes |
| Converter Type | Format Converter |
| Packaging Information | |
| Shipping (Package) Weight | 0.9 kg [1.9 lb] |
| Performance | |
| Frequency Range | NTSC Horizontal = 31.4685KHzVertical = 60 Hz PAL Horizontal = 31.25 KHzVertical = 50 Hz |
| Maximum Analog Resolutions | 1280 x 1024 |
| Supported Resolutions | NTSC - 720 x 480 PAL - 720 x 576 |
| Physical Characteristics | |
| Color | Black |
| Product Height | 25 mm [1 in] |
| Product Length | 165 mm [6.5 in] |
| Product Weight | 0.2 kg [0.5 lb] |
| Product Width | 101 mm [4 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.1 A |
| Input Voltage | 100 ~ 125 AC |
| Output Current | 0.6A |
| Output Voltage | 9 DC |
| Power Consumption (In Watts) | 5.4 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| System and Cable Requirements | The SPK out port cannot be used with headphones. |
| What's in the Box | |
| Included in Package | 3.5mm audio cable |
| AC Adapter | |
| Composite/Svideo to VGA Converter | |
| Instruction Manual | |
| VGA cable | |
This Composite and S-Video to VGA Video Converter lets you play console video games on your computer monitor! With StarTech.com's for Computer Monitors Video Game Jockey, there?s no more waiting to use the TV. Simply connect your Xbox®, Playstation 2®, GAMECUBE™, Dreamcast™, or other game console to the Video Game Jockey, then plug into your computer monitor, and it?s game on!
An economical solution that saves the expense of a separate TV and frees up your workspace, the Composite/S-Video to VGA converter supports full audio pass through via your PC speakers or headphones and switches from PC to game display with the push of a button - the adapter even works when the computer is powered off!
A versatile video solution, the Composite/S-Video to VGA converter is also a great way to connect VCRs, DVD players and camcorders to your monitor.
Backed by StarTech.com's 2-year warranty.
