Product Overview

Cisco^® Catalyst^® 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). They operate on Cisco IOS^® Software and support simple device management as well as network management. The Cisco Catalyst 2960-X and 2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.

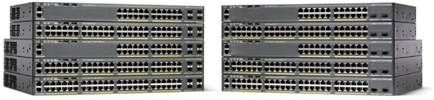

Cisco Catalyst 2960-X Series Switches

Product Highlights

Cisco Catalyst 2960-X and 2960-XR Series Switches feature:

●   24 or 48 Gigabit Ethernet ports with line-rate forwarding performance

●   4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 2 fixed 10 Gigabit Ethernet SFP+ uplinks

●   PoE+ support with a power budget of up to 740W and Perpetual PoE

●   Cisco IOS LAN Base[1] or LAN Lite¹ and Cisco IOS IP Lite[2]

●   Device management with web UI, over-the-air access via Bluetooth, Command-Line Interface (CLI), Simple Network Management Protocol (SNMP), and RJ-45 or USB console access

●   Network management with Cisco Prime^®, Cisco Network Plug and Play, and Cisco DNA^™ Center

●   Stacking with FlexStack-Plus and FlexStack-Extended

●   Layer 3 features with routed access (Open Shortest Path First [OSPF]), static routing, and Routing Information Protocol (RIP)

●   Visibility with Domain Name System as an Authoritative Source (DNS-AS) and Full (Flexible) NetFlow

●   Security with 802.1X, Serial Port Analyzer (SPAN) and Bridge Protocol Data Unit (BPDU) Guard

●   Reliability with higher Mean Time Between Failures (MTBF) and Enhanced Limited Lifetime Warranty
(E-LLW)

●   Resiliency with optional dual field-replaceable power supplies²

Power Supply

An external redundant power supply option is supported on the Cisco Catalyst 2960-X Series Switches. These switches come with one fixed power supply and an option for an external redundant power supply (Cisco Redundant Power System [RPS] 2300).

Dual redundant power supplies are supported on the Cisco Catalyst 2960-XR Series Switches. These switches ship with one power supply by default. The second power supply can be purchased at the time of ordering the switch or as a spare. These power supplies have built-in fans to provide cooling (Figure 2).

Cisco Catalyst 2960-XR Series power supply

Table 1 shows the different power supplies available in the 2960-XR Series switches and the available PoE power. Table 2 lists the PoE and PoE+ power capacity for the Cisco Catalyst 2960-X and 2960-XR Series. Table 3 gives the available PoE and switch power for the 2960-XR Series with different power supply combinations.
