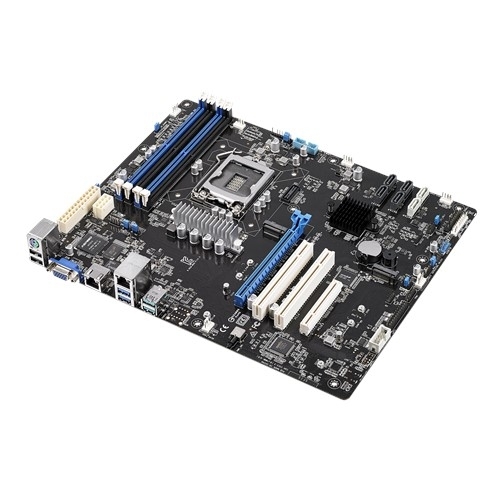

Asus P11C-X Server Motherboard Lga 1151 Ddr4 Udimm (0/ 4) Atx 3Yr Wty P11C-X

SKU
285082
Brand
Asus
Manufacturer Link
MPN
P11C-X
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
Special Price $338.00 Regular Price $341.00
Buy Now And Earn 338 Reward Points!
Add to Compare
  • Powered by the Intel® Xeon® E platform
  • 95W CPU and up to 64GB memory support (4 DIMMs)
  • Rack-optimized design maximizes cooling for excellent thermal efficiency
  • Flexible expandability with 6 native SATA 6G ports , two PCIe Gen3 slots and two PCI legacy slots
  • Dual Intel® Gigabit Ethernet with teaming support
  • Dual M.2 for independent OS drives with RAID 0/1
  • Supports the latest 10Gb/s USB 3.1 onboard for high transfer speed
  • TPM 2.0 Ready secures store keys, digital certificates, passwords and data
  • Complete server management with ASUS Control Center
  • Processor / System Bus
    1 x Socket LGA1151
    Intel® Xeon® processor E-2100 family(95W)
    Intel® Core™ i3 processors
    Intel® Pentium™ processors
    Intel® Celeron™ processors
    *Refer to support page for more information
  • Core Logic
    Intel® C242 Chipset
  • Memory
    Total Slots : 4 (2-channel)
    Capacity : Maximum up to 64GB UDIMM
    Memory Type :
    DDR4 2666/2400 UDIMM non ECC and with ECC
    Memory Size :
    16GB, 8GB, 4GB
    * Refer to support page for more information
  • Expansion Slots
    Total Slot : 4
    Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
    Slot Location 4 : PCI 32bit/33MHz
    Slot Location 5 : PCI 32bit/33MHz
    Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
    Follow SSI Location#
  • Form Factor
    ATX (12"x9.6", 305mm x 244mm)
  • Storage
    SATA Controller :
    Intel® C242 Chipset
    6 x SATA 6Gb/s ports + 2 x M.2 connector *1
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
  • Networking
    1 x Intel® I210AT
    1 x i219-LM
  • Graphic
    Aspeed AST2510 with 64MB VRAM
  • On Board I/O
    1 x TPM header
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    1 x USB 3.0 pin header , Up to 2 Devices
    2 x USB 2.0 pin header , Up to 3 Devices
    6 x Fan Header , 4pin
    1 x Chassis Intruder
    2 x Front LAN LED
    1 x Serial Port Header
    1 x LPT
    2 x M.2 Connector , NGFF Type : 22110/2280/2260/2242
  • Back I/O Ports
    1 x PS/2 Keyboard/ Mouse Port
    2 x USB 3.1
    2 x USB 3.0
    2 x USB 2.0
    1 x VGA Port (onboard Aspeed AST2510)
    2 x RJ45 LAN Ports
  • Management Solution
    ASUS Control Center
  • Accessories
    Gift Box (1-in-1)
    1 x Support DVD
    1 x I/O shield
    6 x SATA 6G cables
    1 x Plate for LGA1151
    1 x ASUS Control Center Quick Guide

    Bulk Pack (10-in-1)
    1 x Support DVD
    1 x I/O shield
    1 x Plate for LGA1151
    1 x ASUS Control Center Quick Guide
  • Note
    *1
    Intel® C242:
    6 * SATA 6Gb/s ports with 2 * M.2 (NGFF 22110/2280/2260/2242, gray SATA port will disable when M.2 is SATA signal)**

    ** One supports both SATA 6Gb/s & PCI-E Gen3 x2 link, the other is SATA 6Gb/s only.
