SRT2200RMXLI Features

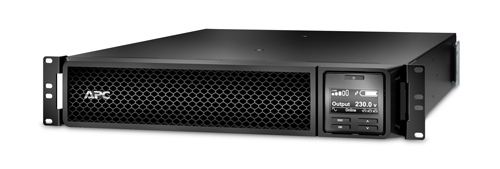

APC Smart-UPS SRT 2200VA RM 230V

• Battery failure notification
  Provides early-warning fault analysis on batteries enabling timely preventive maintenance
• ECO Mode
  Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
• LCD graphics display
  Text and mimic diagrams that display modes of operation, system parameters and alarms.
• Rack/Tower convertible
  Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Smart-UPS On-Line Features & Benefits

Availability

• Automatic internal bypass
  Supplies utility power to the connected loads in the event of a UPS power overload or fault.
• Scalable runtime
  Allows additional run time to be quickly added as needed.
• Intelligent battery management
  Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.
• Automatic restart of loads after UPS shutdown
  Automatically starts up the connected equipment upon the return of utility power.
• Hot-swappable batteries
  Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Marketing Features

• Low operating and maintenance costs with proven reliability and intelligent battery management.
  Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
• Avoids costly power problems by keeping your IT equipment and data protected and available.
  Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
• Peace of mind that comes with full equipment compatibility and reliability of a leader
  Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
• Save time with easy and convenient remote accessibility.
  Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Protection

• Cold-start capable
  Provides temporary battery power when the utility power is out.
• Generator compatible
  Ensures clean, uninterrupted power to protected equipment when generator power is used.
• Input power factor correction
  Minimizes installation costs by enabling the use of smaller generators and cabling.
• Safety-agency approved
  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• Power conditioning
  Protects connected loads from surges, spikes, lightning, and other power disturbances.
• Resettable circuit breaker
  Easy recovery from overloads; no need to replace a fuse.
• Frequency and voltage regulation
  Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Serviceability

• Audible alarms
  Provides notification of changing utility power and UPS power conditions
• Disconnected battery notification
  Warns when a battery is not available to provide backup power.
• User-replaceable batteries
  Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
• Predicitive failure notification
  Provides early-warning fault analysis ensuring proactive component replacement.
• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Adaptability

• Flash upgradeable firmware
  Install maintenance releases of firmware remotely using FTP.
• Rack/Tower convertible
  Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
• Plug-and-Play external batteries
  Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Manageability

• LED status indicators
  Quickly understand unit and power status with visual indicators.
• SmartSlot
  Customize UPS capabilities with management cards.
• InfraStruXure Manager Compatible
  Enables centralized management via the APC InfraStruXure Manager.
• Network manageable
  Provides remote power management of the UPS over the network.
• Serial connectivity
  Provides management of the UPS via a serial port.
