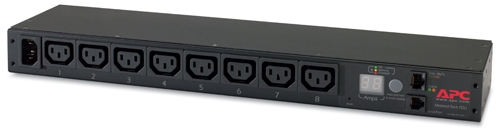

main product photo

Apc (ap7820b) Rack Pdu Metered 1u 12a/ 208v 10a/ 230v (8) C13 Ap7820b

SKU
266000
Brand
Apc
Manufacturer Link
MPN
AP7820B
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
Preorder (Contact Us)
Freight Estimate
$675.00
Buy Now And Earn 675 Reward Points!
Add to Compare

Metered Rack PDU Features & Benefits

  • Load indicator LED
    Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
  • Alarm Thresholds
    Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
  • Local and web-based monitoring
    Status available to customers both in the data center and remotely
  • Local Current Monitoring Display
    The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Alarm Thresholds
    Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
  • Load indicator LED
    Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
  • Remote Management Capabilities
    Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
  • Local Current Monitoring Display
    The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
  • Integrates with StruxureWare Data Center Expert
    An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

  • 　

Output

  • Nominal Output Voltage
    208V , 230V
  • Overload Protection
    No
  • Maximum Total Current Draw
    10
  • Output Connections
    (8) IEC 320 C13 (Battery Backup)
  • Different voltages and corresponding amperages
    10A @ 230V, 12A @ 208VA

Input

  • Nominal Input Voltage
    200V , 208V , 230V
  • Input frequency
    50/60 Hz
  • Input Connections
    IEC-320 C14
  • Cord Length
    1.98meters
  • Load Capacity
    2300VA
  • Maximum Input Current
    15A
  • Regulatory Derated Input Current (North America)
    10A

Physical

  • Maximum Height
    44mm , 4.4CM
  • Maximum Width
    444mm , 44.4CM
  • Maximum Depth
    102mm , 10.2CM
  • Rack Height
    1U
  • Net Weight
    1.73KG
  • Shipping weight
    2.91KG
  • Shipping Height
    64mm , 6.4CM
  • Shipping Width
    470mm , 47.0CM
  • Shipping Depth
    337mm , 33.7CM

Environmental

  • Operating Temperature
    -5 - 45 °C
  • Operating Relative Humidity
    5 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -25 - 65 °C
  • Storage Relative Humidity
    5 - 95 %
  • Storage Elevation
    0-15000meters

Conformance

  • Approvals
    cUL Listed, C-tick, CE, CSA, FCC Part 15 Class A, GOST, UL 60950, UL Listed, VDE, VCCI
  • Standard warranty
    2 years repair or replace

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • Battery Directive
    Compliant
  • Proposition 65 Warning
    Available in Documentation tab
