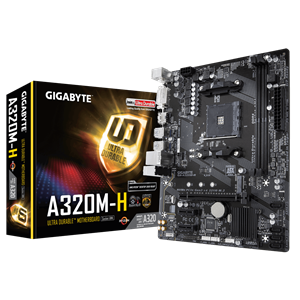

main product photo

Gigabyte Amd A320 Ultra Durable Am4 2Xddr4 1Xdvi 1Xhdmi 1Xrj45 3Xpci-E Matx 1Xm.2 4Xsata 3 Years Warranty Ga-A320M-H

SKU
286686
Brand
Gigabyte
Manufacturer Link
MPN
GA-A320M-H
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
Special Price $111.00 Regular Price $112.00
Buy Now And Earn 111 Reward Points!
Add to Compare

Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard
Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
GIGABYTE™ UEFI BIOS
All New GIGABYTE™™ APP Center, Simple and Easy Use

Specifications
Audio Realtek® ALC887 codec
Chipset AMD A320
Form Factor mATX
I/O Connectors 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks (Line In, Line Out, Mic In)
Integrated CPU Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter; 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version; Maximum shared memory of 2 GB; Actual support may vary by CPU.
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Memory/Type/Bus/Max. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory; Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
PCI Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.); 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Processor Support AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
Raid Support for RAID 0, RAID 1, and RAID 10
RAM Type/Bus/Max. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory; Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
Socket AM4
Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support); 4 x SATA 6Gb/s connectors
Warranty 3 Years
Weight 662g
