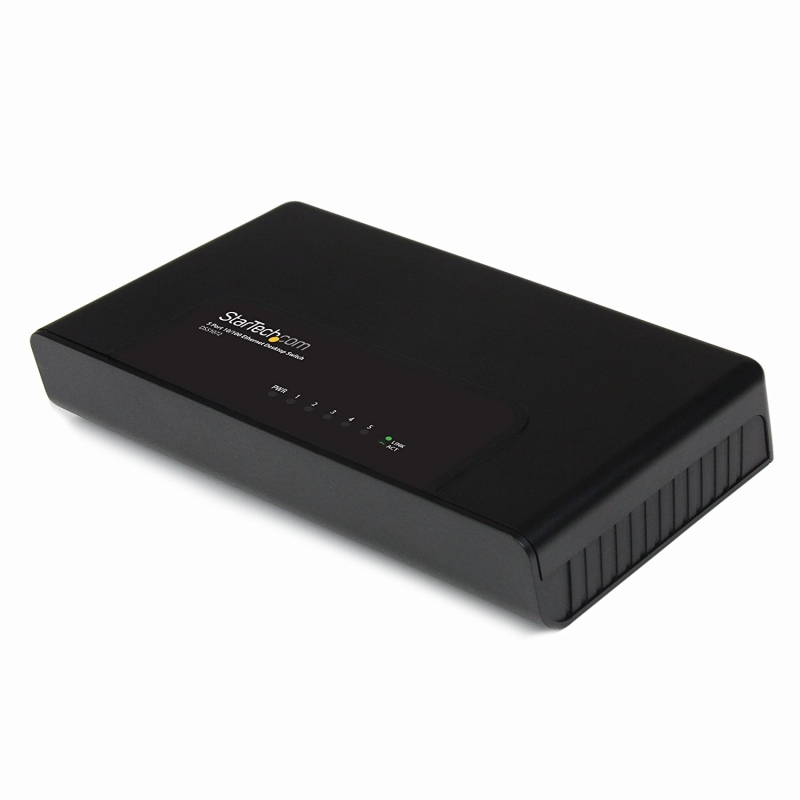

Startech 5 Port Fast Ethernet Switch - 10/100 Desktop Wall Mount Network Switch Ds51072
The DS51072 5-Port Ethernet Network Switch enables up to 5 users to share files and devices (e.g. printers, scanners) over a LAN connection, by expanding an existing network's capacity with additional ports.
Compatible with both 10Base-T (10 Mbps) and 100Base-TX (100Mbps) networks, this Fast Ethernet switch can automatically detect the type of network (auto- negotiation) as well as the type of cable (auto MDIX) and configure itself, making for an easy to install, Plug-and-Play networking solution.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- This 5-port Ethernet switch automatically detects and configures for network speed, duplex and cable type on each port, for a Plug-and-Play installation and setup
- The switch features easily-accessed top-mounted LED indicators, and can be wall-mounted or placed on a desktop
- The network switch uses a simple, fanless design for quiet and energy-efficient operation
| Connector(s) | |
| External Ports | RJ-45 Female |
| Environmental | |
| Humidity | 10 ~ 90% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Hardware | |
| Chipset ID | Atheros - AR8236 |
| Industry Standards | IEEE 802.3, IEEE 802.3u |
| Ports | 5 |
| Indicators | |
| LED Indicators | Link/ Activity (green) |
| Power (green) | |
| Packaging Information | |
| Shipping (Package) Weight | 331 g [11.7 oz] |
| Performance | |
| Auto MDIX | Yes |
| Flow Control | IEEE 802.3x |
| Full Duplex Support | Yes |
| MAC Address | Automatic learning, Automatic aging |
| Maximum Cable Length | 100 m [328 ft] |
| Maximum Data Transfer Rate | 100 Mbps |
| Supported Protocols | CSMA/CD |
| Switching Architecture | Store and Forward |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 25 mm [1 in] |
| Product Length | 140 mm [5.5 in] |
| Product Weight | 122 g [4.3 oz] |
| Product Width | 90 mm [3.5 in] |
| Power | |
| Input Current | 0.3 A |
| Input Voltage | 110V-240V AC |
| Output Current | 0.6A |
| Output Voltage | 5 DC |
| Plug Type | H |
| Power Consumption (In Watts) | 3 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| What's in the Box | |
| Included in Package | Ethernet Switch |
| Instruction Manual | |
| Power Adapter | |
The DS51072 5-Port Ethernet Network Switch enables up to 5 users to share files and devices (e.g. printers, scanners) over a LAN connection, by expanding an existing network's capacity with additional ports.
Compatible with both 10Base-T (10 Mbps) and 100Base-TX (100Mbps) networks, this Fast Ethernet switch can automatically detect the type of network (auto- negotiation) as well as the type of cable (auto MDIX) and configure itself, making for an easy to install, Plug-and-Play networking solution.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
