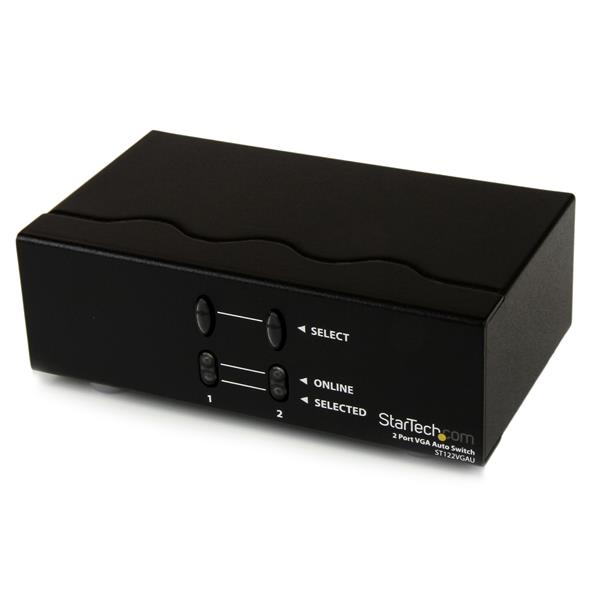

Startech 2 Port Vga Auto Switch - Vga Auto Switcher - Vga Auto Switch - 2 Port Vga Switch St122vgau
| General Information | |
|---|---|
| Brand Name: | StarTech.com |
| Manufacturer Part Number: | ST122VGAU |
| Manufacturer Website Address: | http://www.startech.com |
| Manufacturer: | StarTech.com |
| Marketing Information: | Switch between 2 VGA signals on a single display; features automatic, prioritized switching. The ST122VGAU VGA Auto Switcher lets you share a display between two computers and prioritize your VGA signals. The VGA switch features a primary and secondary VGA input port, and automatically outputs the signal from the primary input. When the signal feed connected to the primary input port is cut, the switcher automatically defaults to the video signal on the secondary VGA input port. Designed for maximum control and versatility, the VGA Auto switcher also offers manual control of connected signals with easy-to-use front panel buttons that allow you to toggle between video sources. |
| Product Model: | ST122VGAU |
| Product Name: | 2 Port VGA Auto Switch |
| Product Type: | Video Switchbox |
| Technical Information | |
|---|---|
| Device Supported: | Computer |
| Number of Displays Supported: | 1 |
| Number of Input Devices Supported: | 2 |
| Video | |
|---|---|
| Maximum Video Resolution: | 1920 x 1440 |
| Connector(s) | |
| Connector A | VGA (15 pin, High Density D-Sub) Female |
| Connector B | VGA (15 pin, High Density D-Sub) Female |
| Hardware | |
| Audio | No |
| Industry Standards | DDC1, DDC2, DDC2B, DDC2B+, DDC2AB ( DDC Support on Port 1 only) |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 0.8 kg [1.7 lb] |
| Performance | |
| Bandwidth | 250 MHz |
| MTBF | 80,000 hours |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 195 mm [7.7 in] |
| Product Length | 130 mm [5.1 in] |
| Product Weight | 930 g [32.8 oz] |
| Product Width | 56 mm [2.2 in] |
| Power | |
| Center Tip Polarity | Positive |
| Output Current | 0.3A |
| Output Voltage | 9 DC |
| Power Consumption (In Watts) | 2.7 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | Port 1 is set to have higher priority than port 2 when both signals are on |
| What's in the Box | |
| Included in Package | 2 Port VGA Auto Switch |
| Instruction Manual | |
| Universal Power Adapter (US/UK/EU/AUS) | |
The ST122VGAU VGA Auto Switcher lets you share a display between two computers and prioritize your VGA signals. The VGA switch features a primary and secondary VGA input port, and automatically outputs the signal from the primary input. When the signal feed connected to the primary input port is cut, the switcher automatically defaults to the video signal on the secondary VGA input port.
Designed for maximum control and versatility, the VGA Auto switcher also offers manual control of connected signals with easy-to-use front panel buttons that allow you to toggle between video sources.
